Product Details
＋

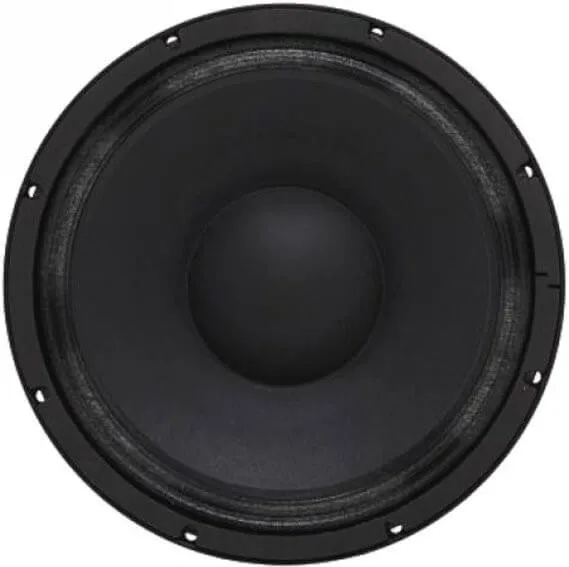

12" high efficiency Neodymium mid-bass woofer.
|
SPECIFICATIONS Nominal Diameter: Nominal Impedance: Nominal Power: Freq. Response: Sensitivity: Voice Coil Diameter: |

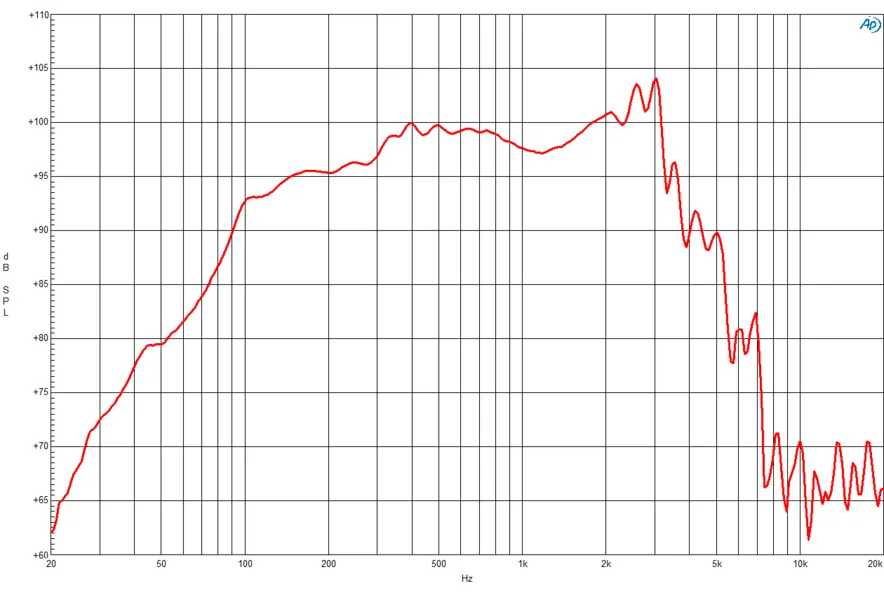

12", 320mm 8 ohms 400w rms, 800w program 50 Hz-2 kHz 100 db 1w/1m 3.0", 76mm |
|
MOUNTING INFORMATION Overall Diameter: Baffle Hole Diameter: Mounting Hole BCD: Depth: |
12.40", 315mm 11.1", 283mm 11.7", 298mm 5.5", 141mm |
|
T/S PARAMETERS Fs: Re: Le: Qms: Qes: Qts: Vas: Xmax: |
50.0 Hz 5.3 ohms 1.0mH 4.2 0.21 0.20 73 L, 2.5 cuft 7.0mm |
|

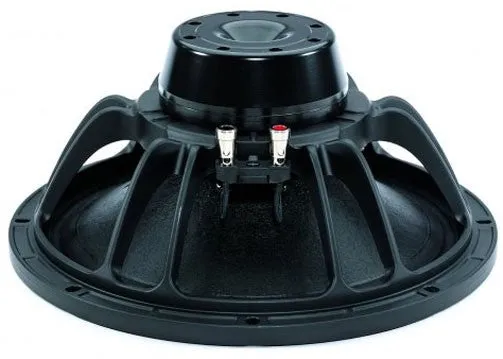

CONSTRUCTION -Cast basket -Neodymium magnet with vented voice coil Recone Kit: RCK12NDL768 |
