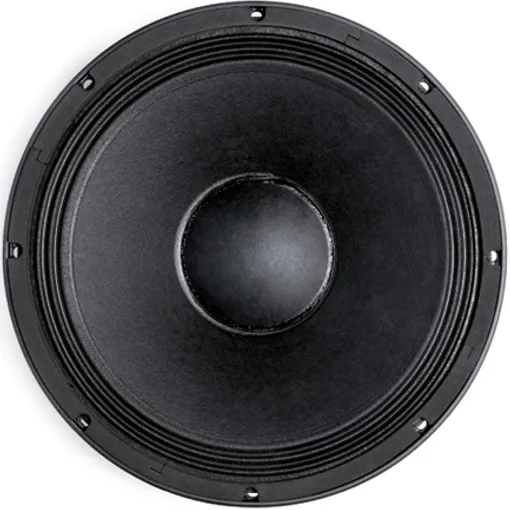

Name: B&C 12PE32 - 8 ohm 12" 250W Ferrite 2.5" Voice Coil Woofer
SKU: 2224353

Product Details ＋

12" high efficiency mid-bass woofer.

SPECIFICATIONS
Nominal Diameter: 12", 320mm
Nominal Impedance: 8 ohms
Nominal Power: 250w rms, 500w program

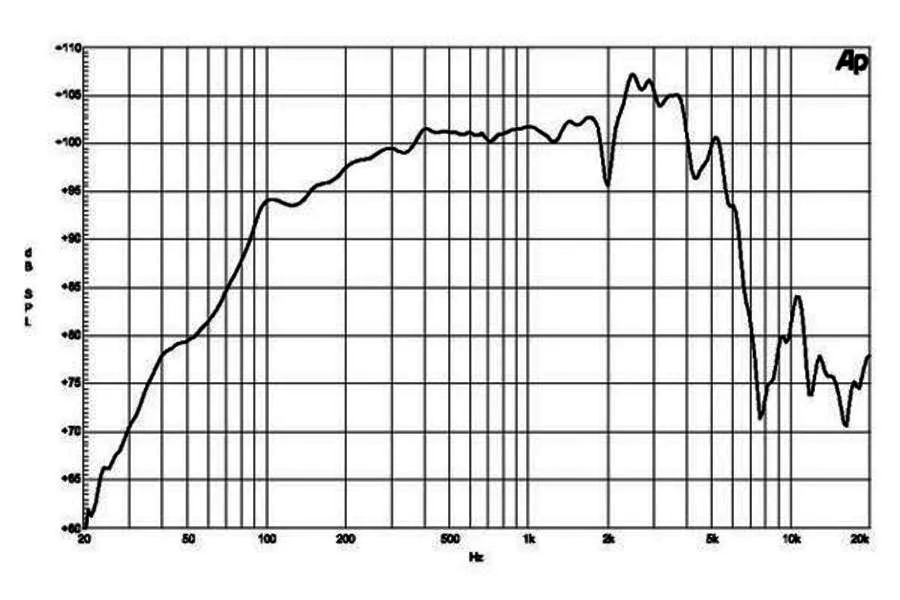

Freq. Response: 50 Hz-4.0 kHz
Sensitivity: 101 db 1w/1m
Voice Coil Diameter: 2.5", 65mm

MOUNTING INFORMATION
Overall Diameter: 12.4", 315mm
Baffle Hole Diameter: 11.10", 282mm
Mounting Hole BCD: 11.6", 296mm
Depth: 5.3", 135mm

T/S PARAMETERS
Fs: 51.0 Hz
Re: 5.8 ohms
Le: 1.2mH
Qms: 7.6
Qes: 0.19
Qts: 0.18
Vas: 101 L, 3.56 cuft
Xmax: 2.8mm

CONSTRUCTION
-Cast basket
-Ferrit magnet
