Product Description

• The LH1-EC30-IN is a high-efficiency horn loudspeaker providing excellent speech reproduction and sound distribution for a wide scope of outdoor applications

• It is ideal for sports grounds,places of worship,parks,exhibitions,factories and open meeting areas

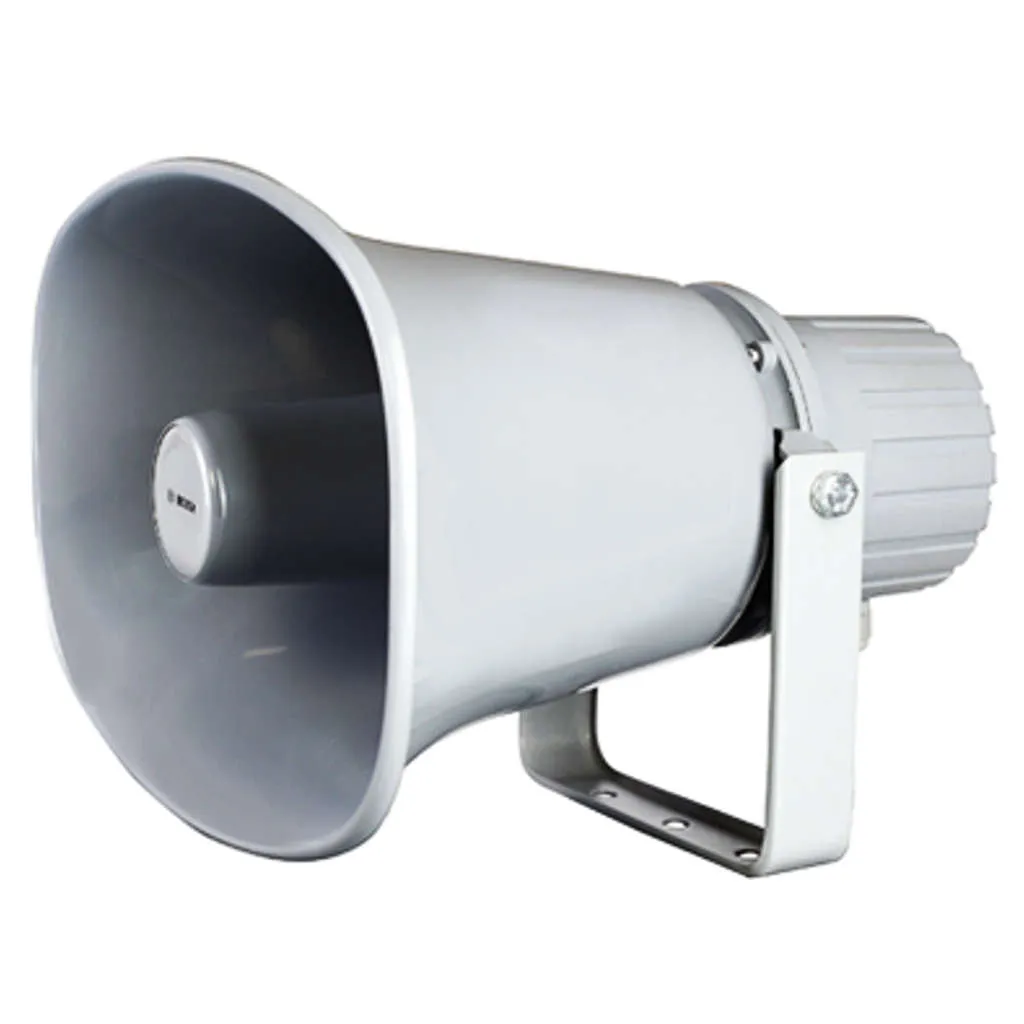

• The LH1-EC30-IN is a circular horn loudspeaker and its horn and back-cover are made of ABS material

• The speaker has a line matching transformer to connect to a 100V output from an amplifier

• The loudspeaker has power tappings at full power,half power and quarter power to connect at different power levels

• Features

• Excellent speech reproduction

• Water-and dust protected to IP66

• Easy to install

• Simple power tapping through color code

• Functions

• The LH1-EC30-IN model horn speaker is for direct connection to a 100V line output and is finished in light grey (RAL 7035) color

• The horn speaker is water and dust protected

• The horn loudspeaker includes a 100V transformer with taps on the primary winding to allow different power tappings

• Nominal full-power,half-power or quarter-power radiation (in 3 dB steps) can easily be selected by connecting the amplifier output to the appropriate tapping

• A two meter four-core cable is fitted to the horn for connectivity

• Each core is a different color,and is connected to one of the primary tappings on the transformer

• Color code identification is provided on the product label

• The horn loudspeaker is supplied complete with sturdy adjustable mounting brackets,allowing the sound beam to be accurately directed
