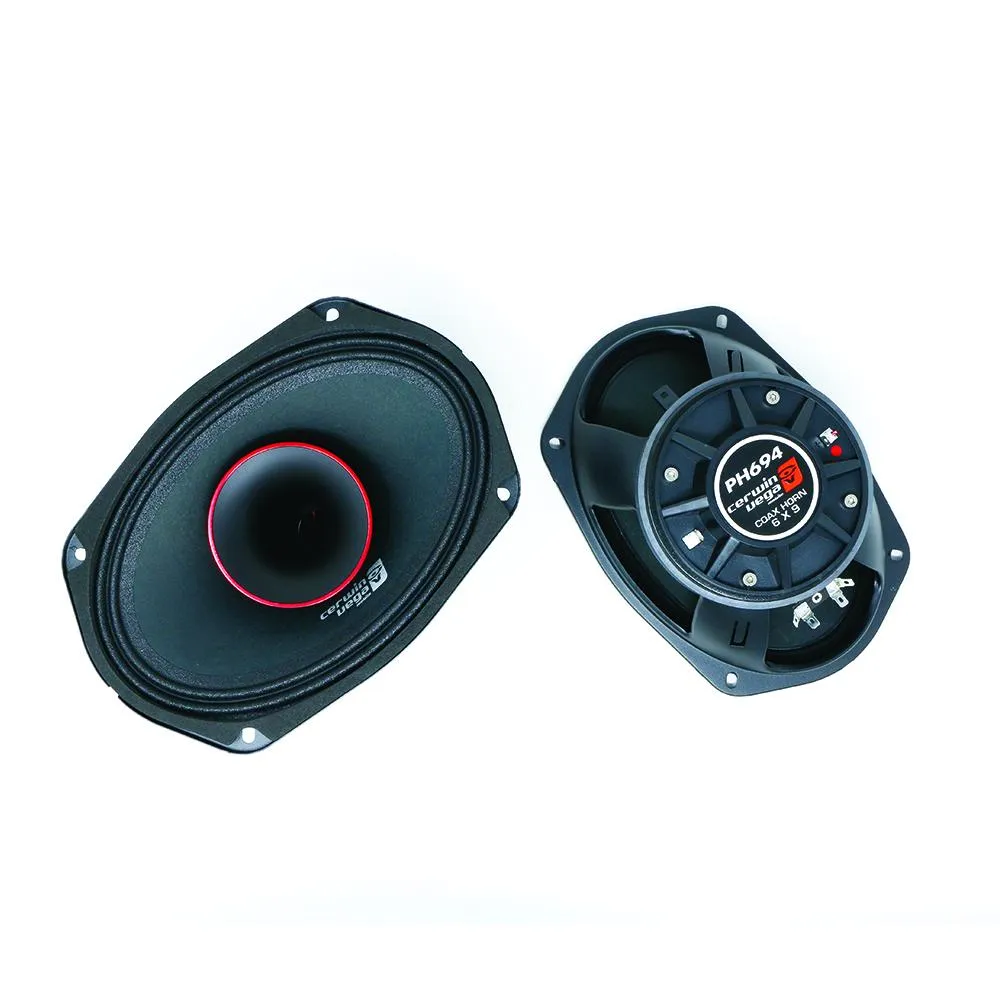

CERWIN VEGA – PH694
6″ x 9″ PRO Full-Range Co-Ax Horn Speakers

GENERAL FEATURES:
6 X 9” PRO Full-Range Co-Ax Horn Speaker
Ferrite Strontium High Temp Magnet Structure
Heavy Duty Stamped Steel Basket
Advanced Voice Coil Heat Sink Design for better Heat Dissipation
1.5” Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
1.0” Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Tweeter
12dB 2nd Order Filter Crossover for better Protection of the Tweeter

SPECS:

• 160W RMS / 320W MAX Power Handling
• Mounting Depth: 3.90” / 99mm
• Mounting Diameter: 8.74” x 5.98” / 222 x 152mm
• Frequency Response: 80Hz -18Khz
• High Sensitivity 103dB 1W/1M
