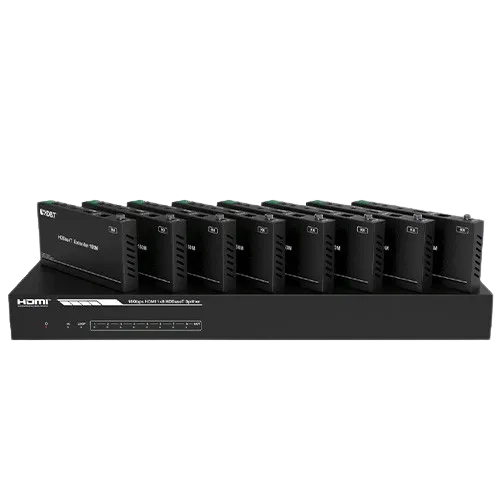

HDBaseT HDMI 2.0 1x8 4K Splitter

Specifications

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• 18Gbps video bandwidth
• Video resolution up to 4K2K@60Hz 4:4:4
• Supports HDR, HDR10 , HLG and Dolby vision
• Supports up to 7.1CH HD audio pass-through
• Digital and analog audio de-embedded output
• Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
• 1 HDMI input, 1 HDMI loop output and 8 HDBaseT outputs.
• IR, RS-232 routed to HDBaseT output
• Advanced EDID management
• Support one-way POC function (only from transmitter to receiver)
• Compact design for easy and flexible installation
