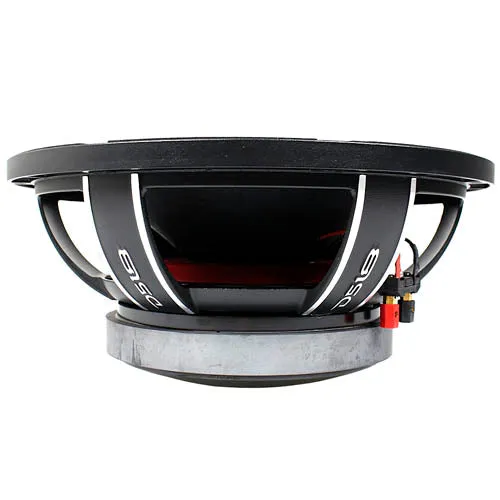

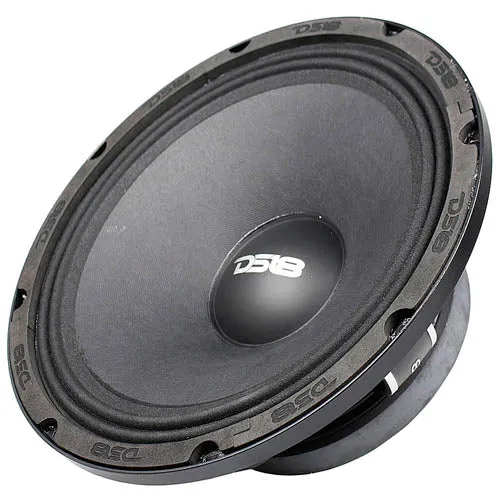

DS18 PRO-FU12.8 12" Mid Range Loudspeaker 1200W Max 600W RMS 8 Ohm
A fresh new DS18 Mid Range speaker has landed on the pro audio scene! The PRO FU12.8 sports a 3-inch voice coil, high-quality parts, and is a great choice for your pro audio needs. These were designed to give you maximum musical precision for very high clarity and volume. The 3-inch voice coil will take 600 watts RMS and 1200 watts max with extreme efficiency and reliability. The PRO FU will give you screaming vocals — but have enough cone area to help you with your midbass.
Specifications
• Nominal Diameter: 12"
• Nominal Impedance: 8 OHMS
• MAX Power Handling: 1200W
• RMS Power Handling: 600W
• Sensitivity (1w/1m): 97.7 dB
• Frequency Response: 57hz-10KHz
• Recommended HI Pass Crossover: 80Hz
Motor
• Voice Coil Diameter: 3"
• Voice Coil Former Material: Fiberglass
• Winding Material: CCA
• Cone Material: Non-pressed Paper
• Dust Cap: Paper
• Surround Material: Cloth
• Basket Material: Aluminum
• Magnet Material: Ferrite
• Magnet Weight: 82 oz
Measurements
• Overall Diameter: 12.4"
• Front Mount Baffle Cutout: 5.39"
• Mounting Depth: 11.2"
• Overall Depth: 4.92"
• Motor Diameter: 7.4"
