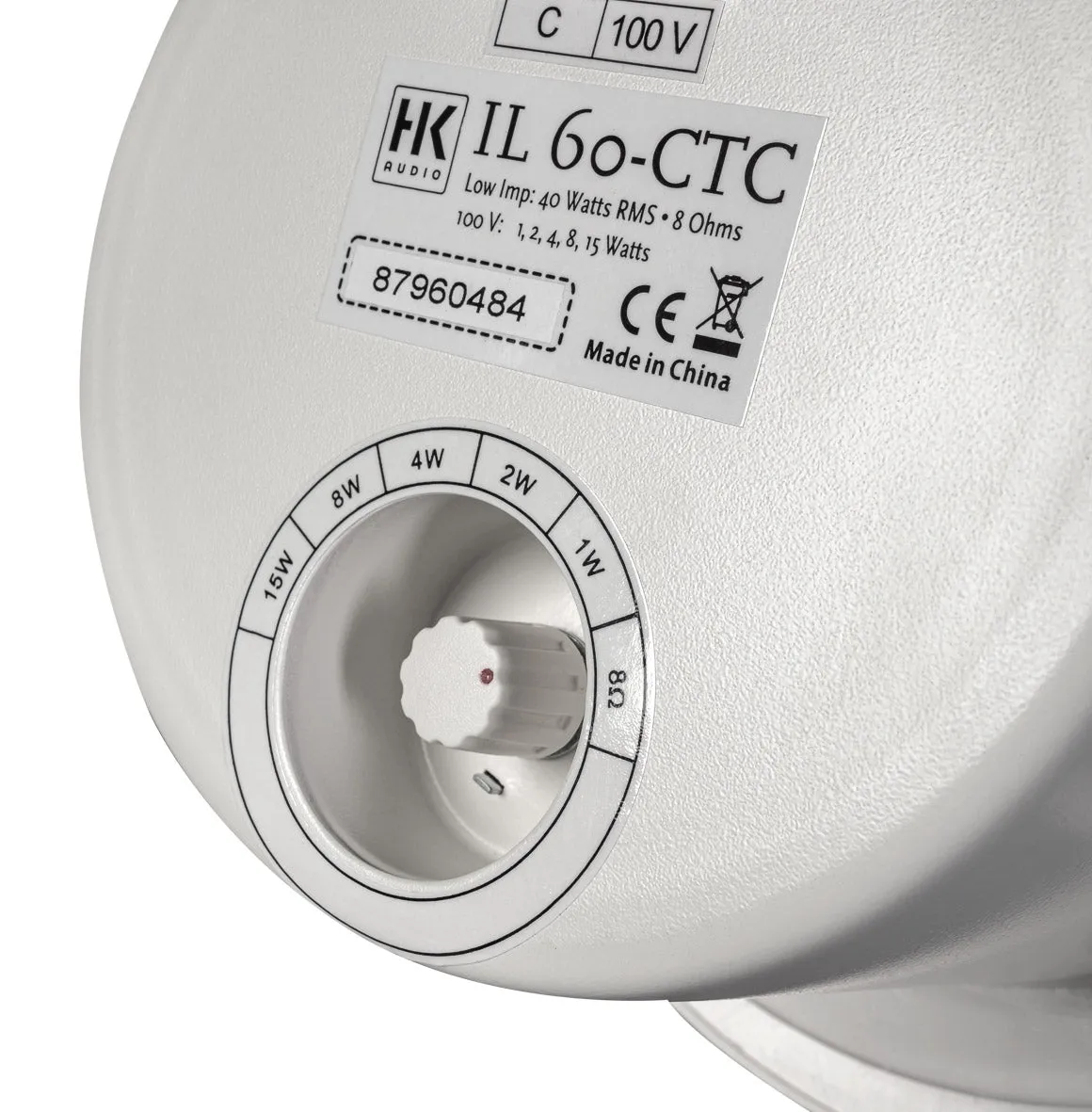

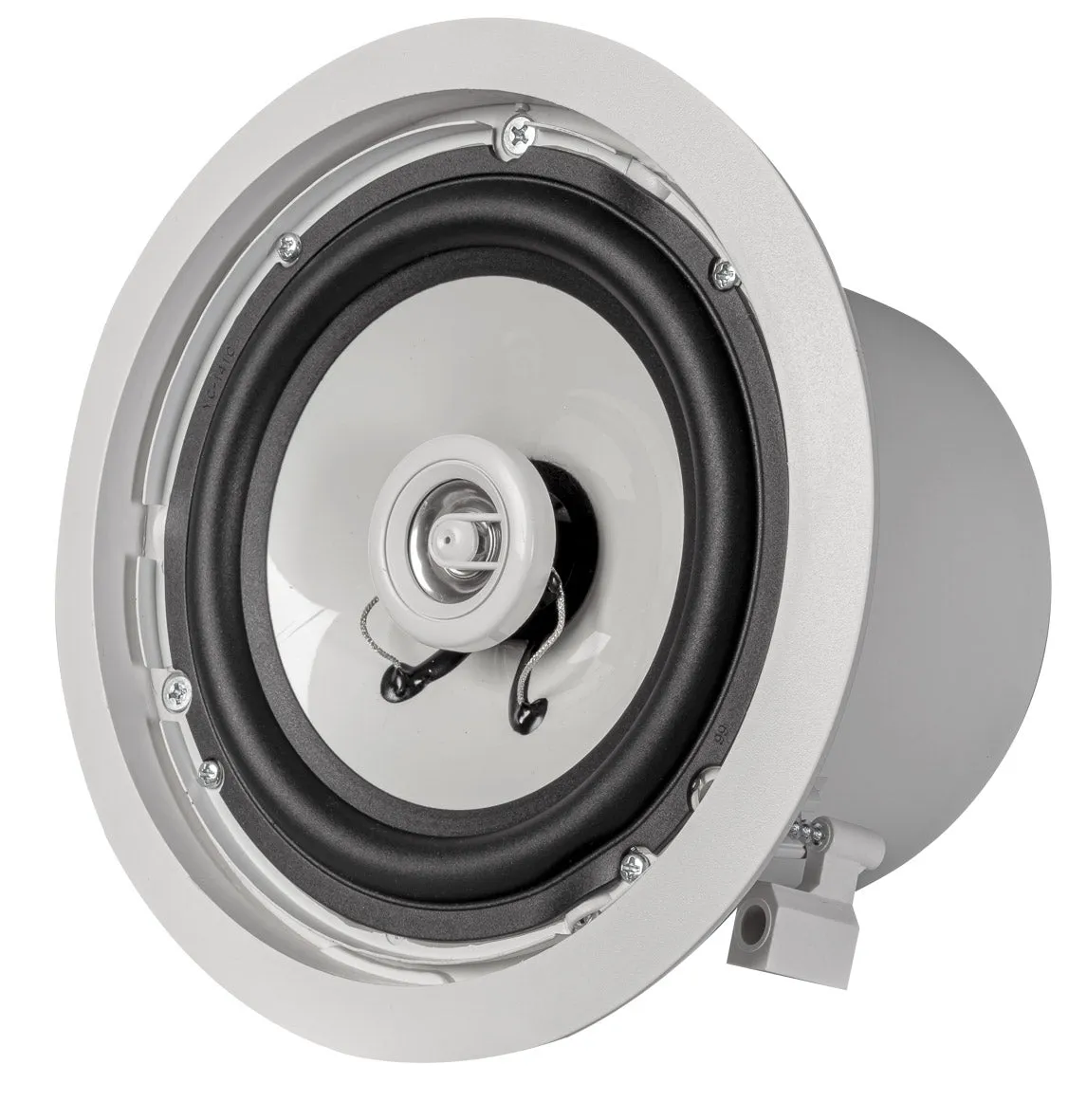

Ceiling loudspeaker with rear chamber for ceilings from 10 – 40 mm. Integrated mounting brackets and pluggable protective grille. Equipped with 6.5″ woofer and 0.75″ tweeter in coaxial arrangement, for short listening distances. Integrated passive crossover and switchable 100 V transformer with five power taps (1 W/ 2 W/ 4 W/ 8 W/ 15 W). Modification of the power tapping in the installed state via switch possible. Standard finish is white, repainting possible.

Specifications

• Product Class: Install Sound
• Headline: Ceiling Speaker IL 60-CT
• Power-handling nominal (RMS): 40 W
• Power-handling, program: 120 W
• Power-handling, peak: 80 W
• Nominal impedance: 8 ohms
• Maximum SPL, @ 10% THD: 106 dB
• Maximum SPL, 1W/1m (@ 3% THD): 104 dB
• Sensitivity 1W/1m: 89 dB
• Frequency response /- 3 dB: 70 Hz to 20 kHz
• Frequency response -10 dB: 60 Hz to 20 kHz
• Low/Mid Speaker: 6,5" woofer
• HF Driver: 3/4" tweeter
• Crossover frequency: 3 kHz

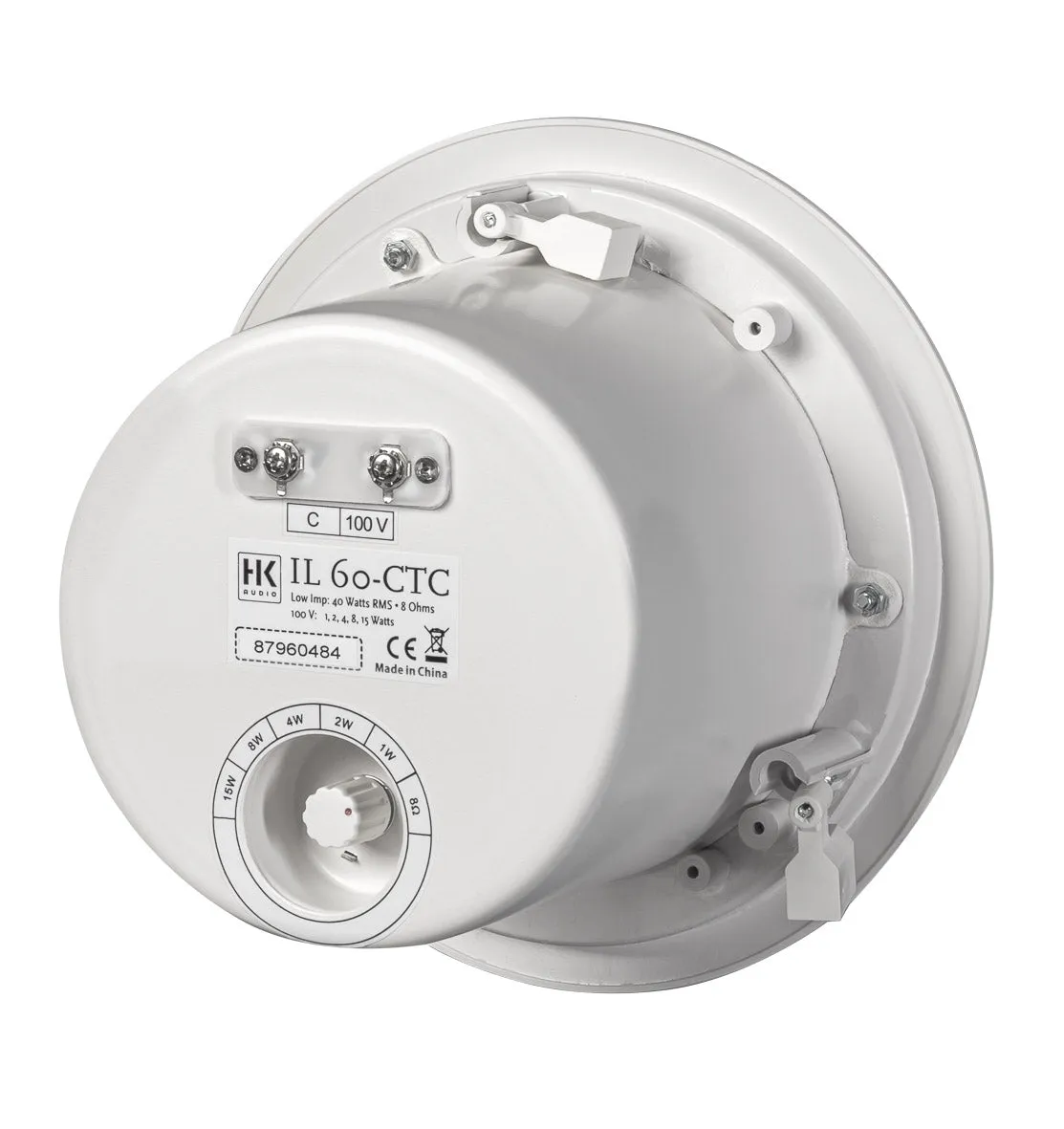

• Connections: 1 terminal strip, 1, 2, 4, 8, 15 W, Off
• Enclosure: polymer

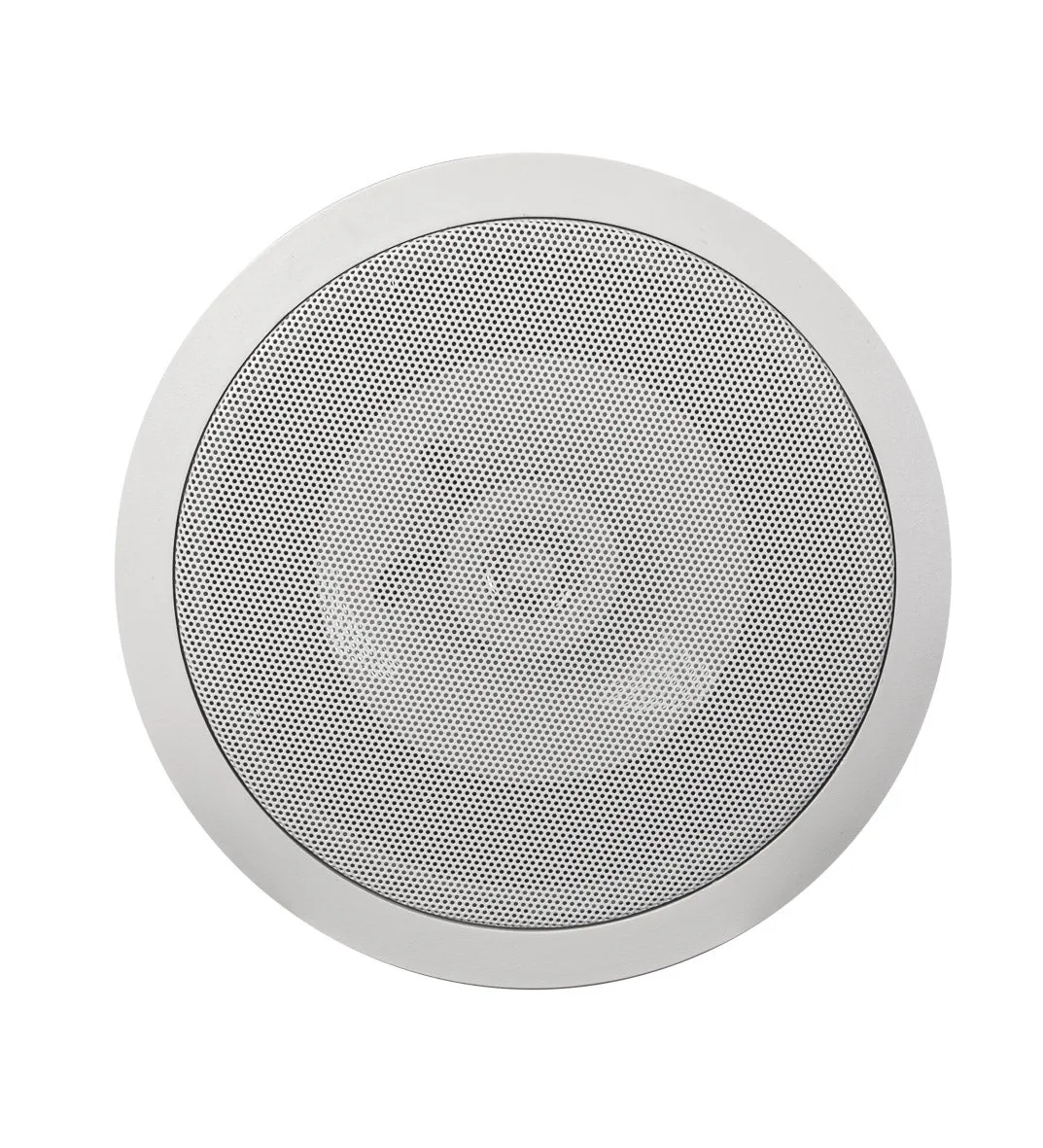

• Grille: metal grille
• Finish: white
• Dimensions (WxHxD): 18 cm, 7 1/16” x 12.7 cm, 5”
• Weight: 1.7 kg/ 3.74 lbs
