Product Details
＋

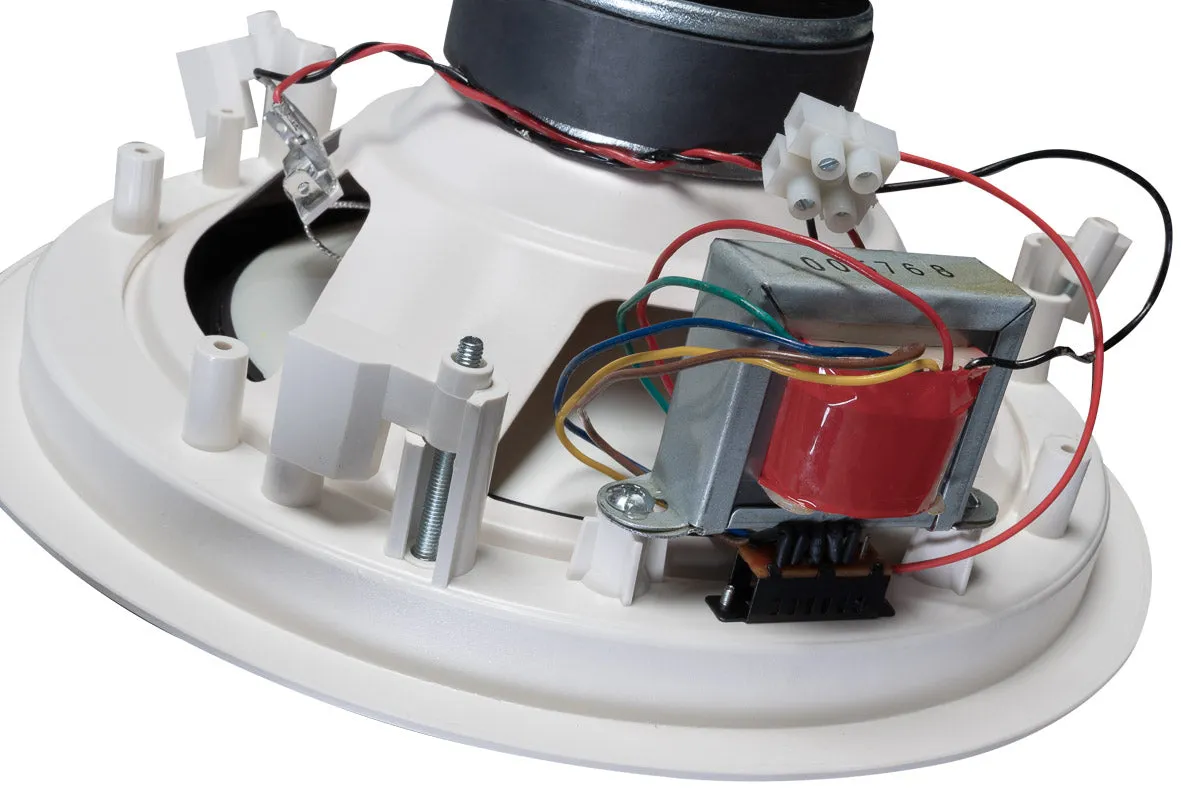

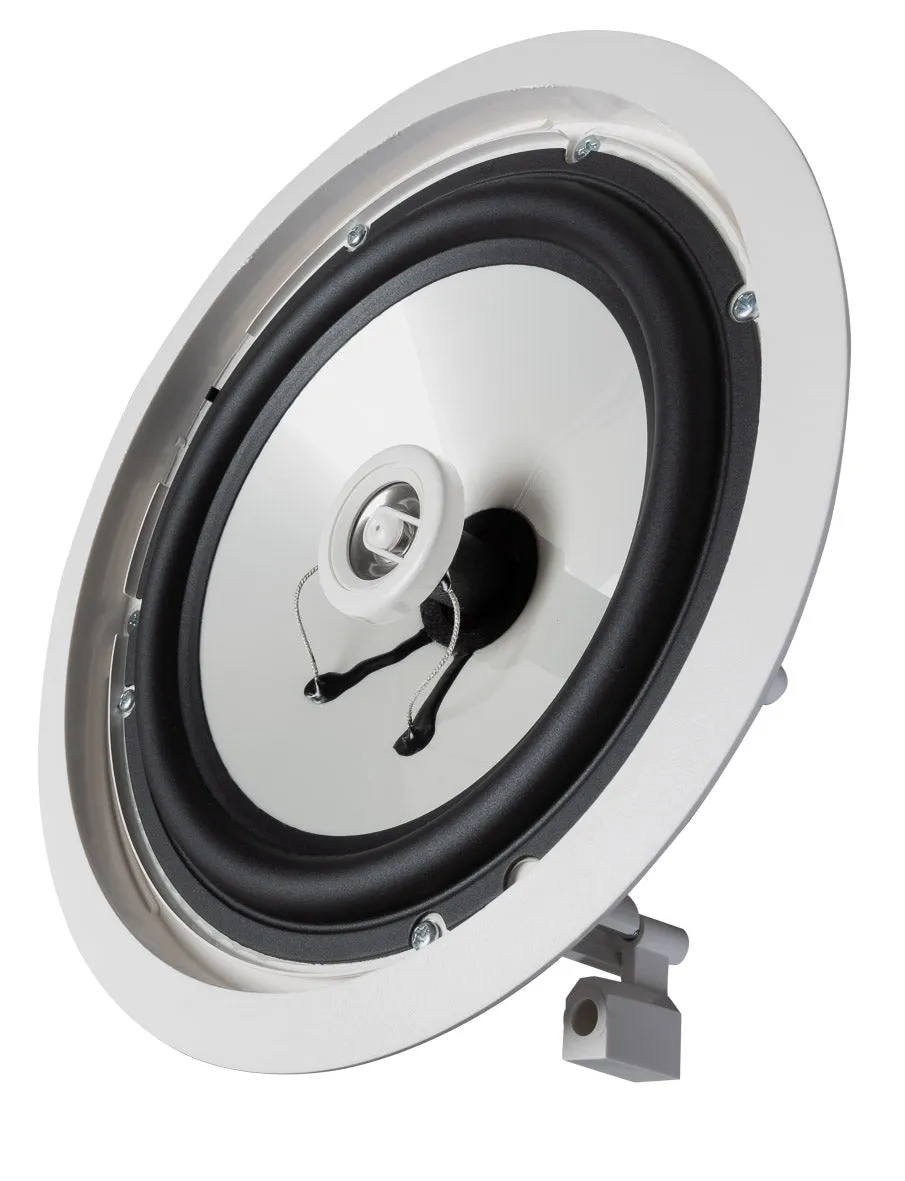

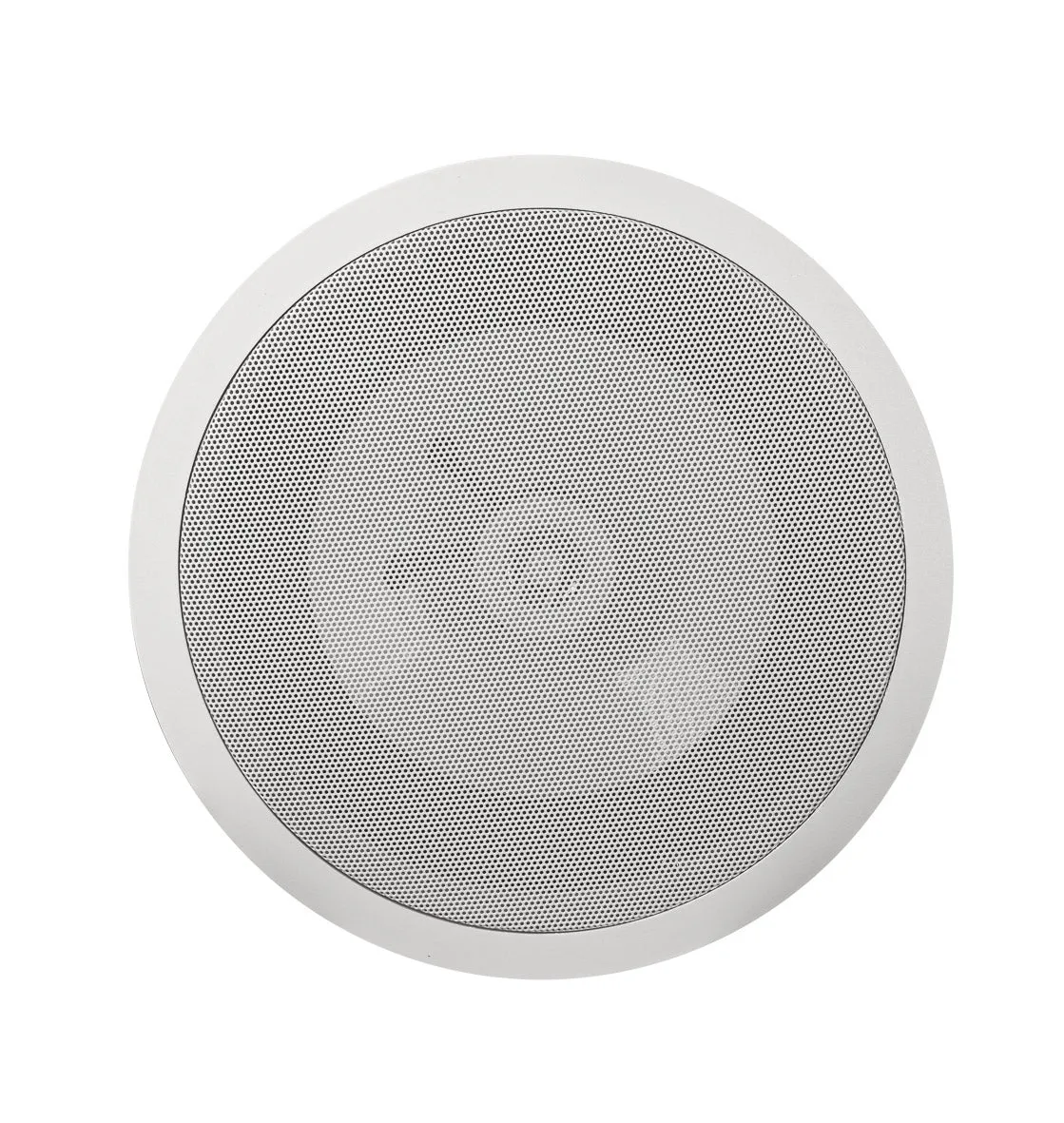

Ceiling loudspeaker without rear chamber for ceilings from 10 – 40 mm. Integrated mounting brackets and pluggable protective grille. Equipped with 8″ woofer and 0.75″ tweeter in coaxial arrangement, for short listening distances. Integrated passive crossover and switchable 100 V transformer with five power taps (1 W/ 2 W/ 4 W/ 8 W/ 15 W). Modification of the power tapping in the installed state via switch possible. Standard finish is white, repainting possible.
Specifications
| Product Class | Install Sound |
| Headline | Ceiling Speaker IL 80-CT |
| Power-handling nominal (RMS) | 60 W |
| Power-handling, program | 120 W |
| Power-handling, peak | 180 W |
| Nominal impedance | 8 ohms |
| Maximum SPL, @ 10% THD | 106 dB |
| Maximum SPL, 1W/1m (@ 3% THD) | 104 dB |
| Sensitivity 1W/1m | 89 dB |
| Frequency response /- 3 dB | 60 Hz - 20 kHz |
| Frequency response -10 dB | 50 Hz - 20 kHz |
| Low/Mid Speaker | 8" woofer |
| HF Driver | 1" tweeter |
| Crossover frequency | 3 kHz |
| Connections | 1 terminal strip, 1, 2, 4, 8, 15 W, Off |
| Enclosure | polymer |
| Grille | metall grille |
| Finish | white |
| Dimensions (WxHxD) | 22 cm/ 8 2/3" x 9.5 cm/ 3 2/3" |
| Weight | 1,4 kg / 3.08lbs |
