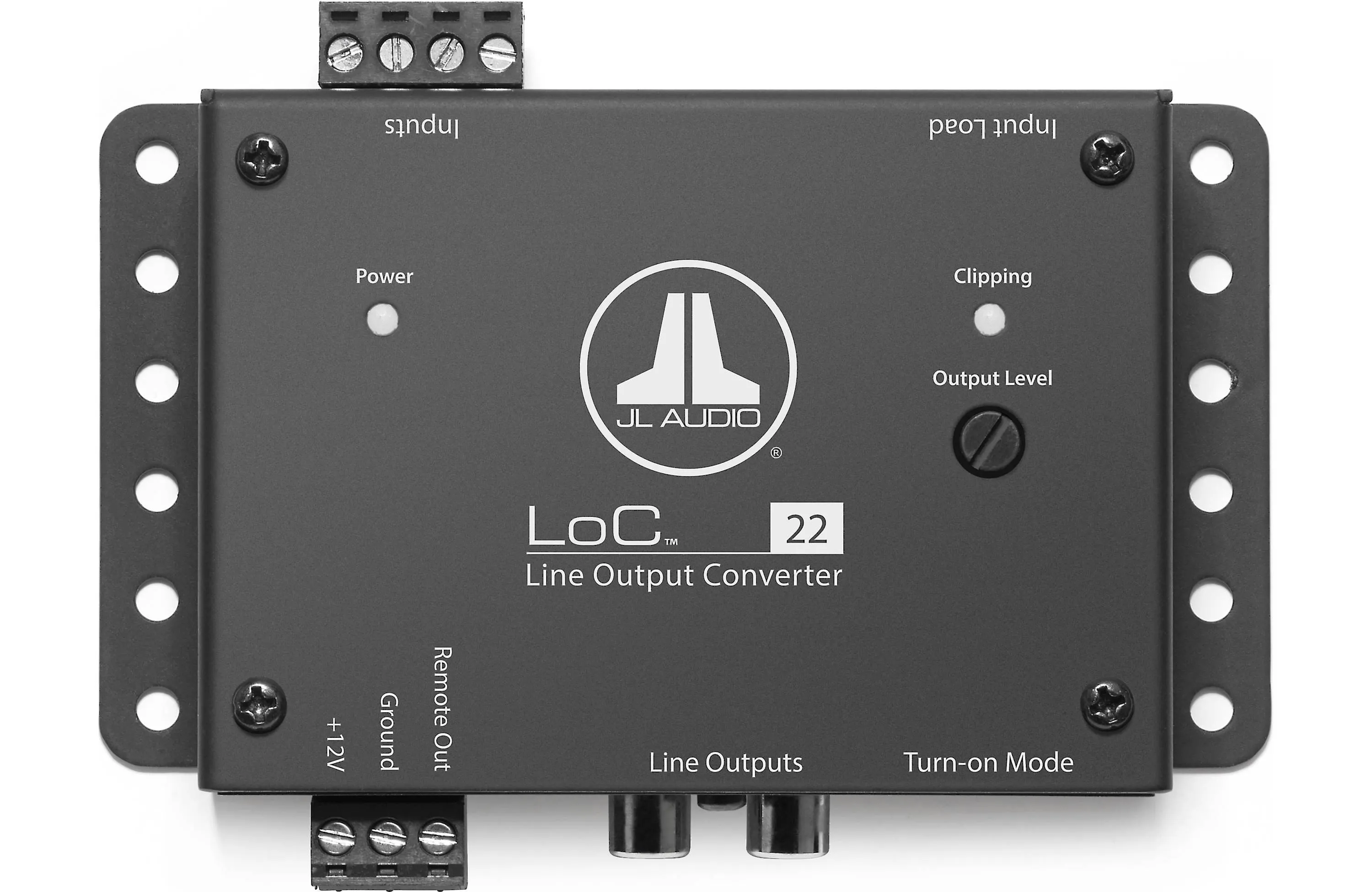

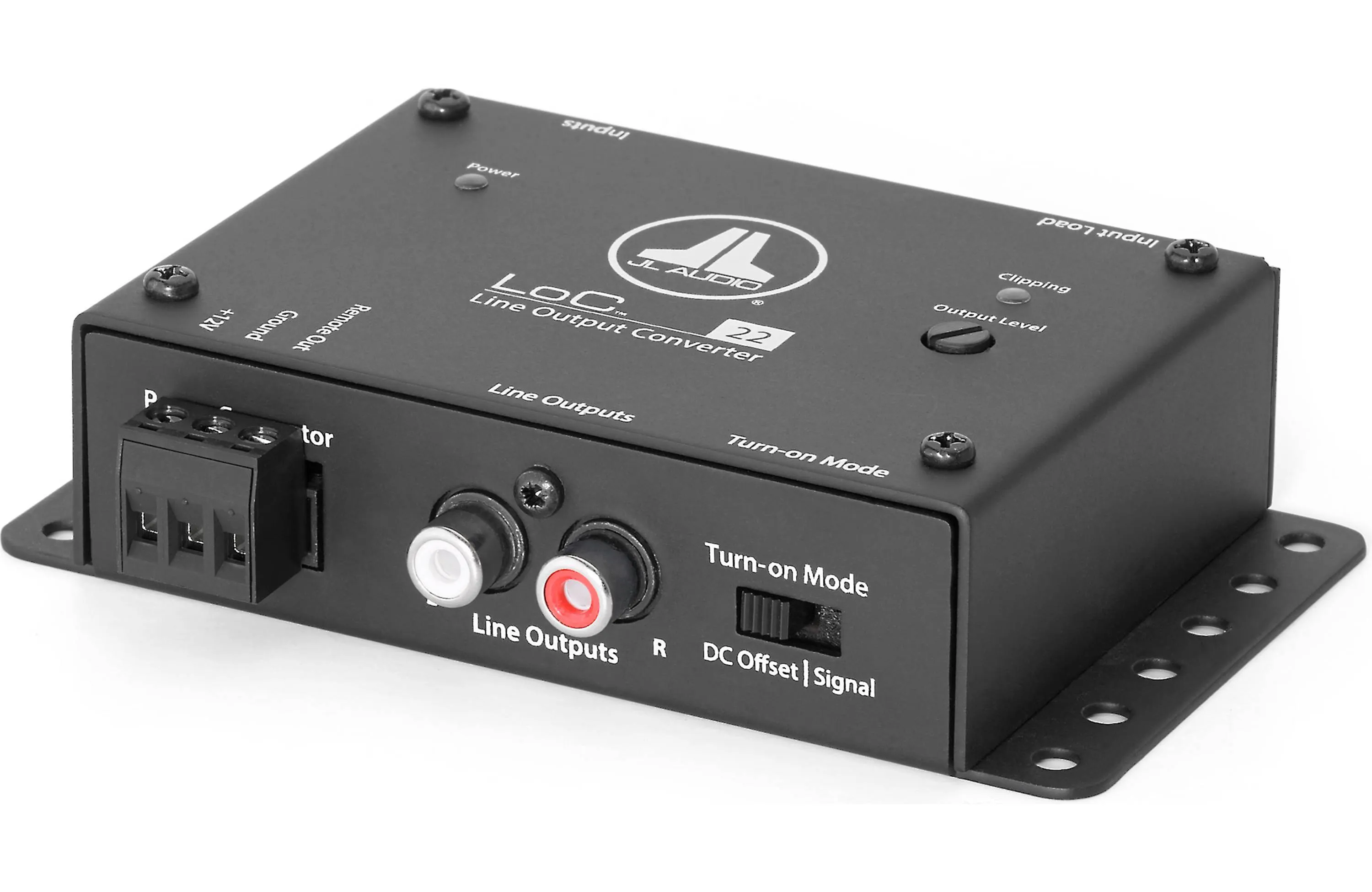

Product Details
＋
Highlights
- Fully active, all analog circuit design by Bruce Macmillan, handles powerful factory amplifier outputs, up to 40 volts per channel
- Differential-balanced input architecture offers noise rejection and compatibility with most analog outputs from OEM source units and amplifiers
- Dual range input load switch (20 kΩ/Normal, 60 Ω/Low Z, thermally protected) for maximum compatibility with OEM amplifiers
- One stereo pair of crystal-clear, line-level RCA output jacks (up to 8V RMS)
- Automatic turn-on via DC-Offset or Signal-Sensing
- A dedicated 12V remote turn-on output (maximum 100 mA) to activate aftermarket signal processors or amplifiers
- Onboard LED clipping indicator makes output level setting quick & easy
- Ultra-compact chassis design fits into just about any installation location!
Features
- 2-channel active line output converter
- Designed to work with most factory systems
- 2-channel differential balanced speaker-level inputs
- Up to 40-volt (400 watts RMS) power handling
- 2-channel preamp RCA outputs (up to 8 volts)
- Variable output level control and clip indicator light
- Automatic turn on: signal-sensing or DC offset
- 12-volt turn-on lead output
Specifications
| Power Supply Type | Switching, MOSFET PWM, Regulated |
| Operating Voltage | 9 - 16 V DC |
| Standby Current Draw | <1.6 mA |
| Operating Current Draw | 0.13 A at 13.8V |
| Frequency Response | 3 Hz - 32 kHz ( 0 dB, -1dB) |
| S/N Ratio @ 2V RMS | Gain at Min: 118 dB Gain at Max: 103 dB (20 kHz Bandwidth) |
| Remote Output Capacity | 100 mA (maximum) |
| Recommended Fuse Value | 1 A |
| Recommended Fuse Type | Fast-Acting, ATO/ATC or similar |
| Input Channels | Two |
| Input Type | Differential-Balanced |
| Input Voltage | 40V RMS per channel (maximum) |
| Input Impedance | Normal: 20kΩ Low Z: 60Ω |
| Turn-On Threshold | Signal-Sensing: 5 mV On/3.5 mV Off at1 kHz (Left Input) DC-Offset: 4.5 V |
| Output Channels | Two |
| Analog Output | Unbalanced, stereo RCA jacks |
| Max. Unclipped Output | 8V RMS |
| Output Impedance | 450 Ω |
| Gain Range | -27.3 dB (full CCW) to 3.2 dB (full CW) |
| THD N | 0.01% at 2V RMS (1kHz) |
