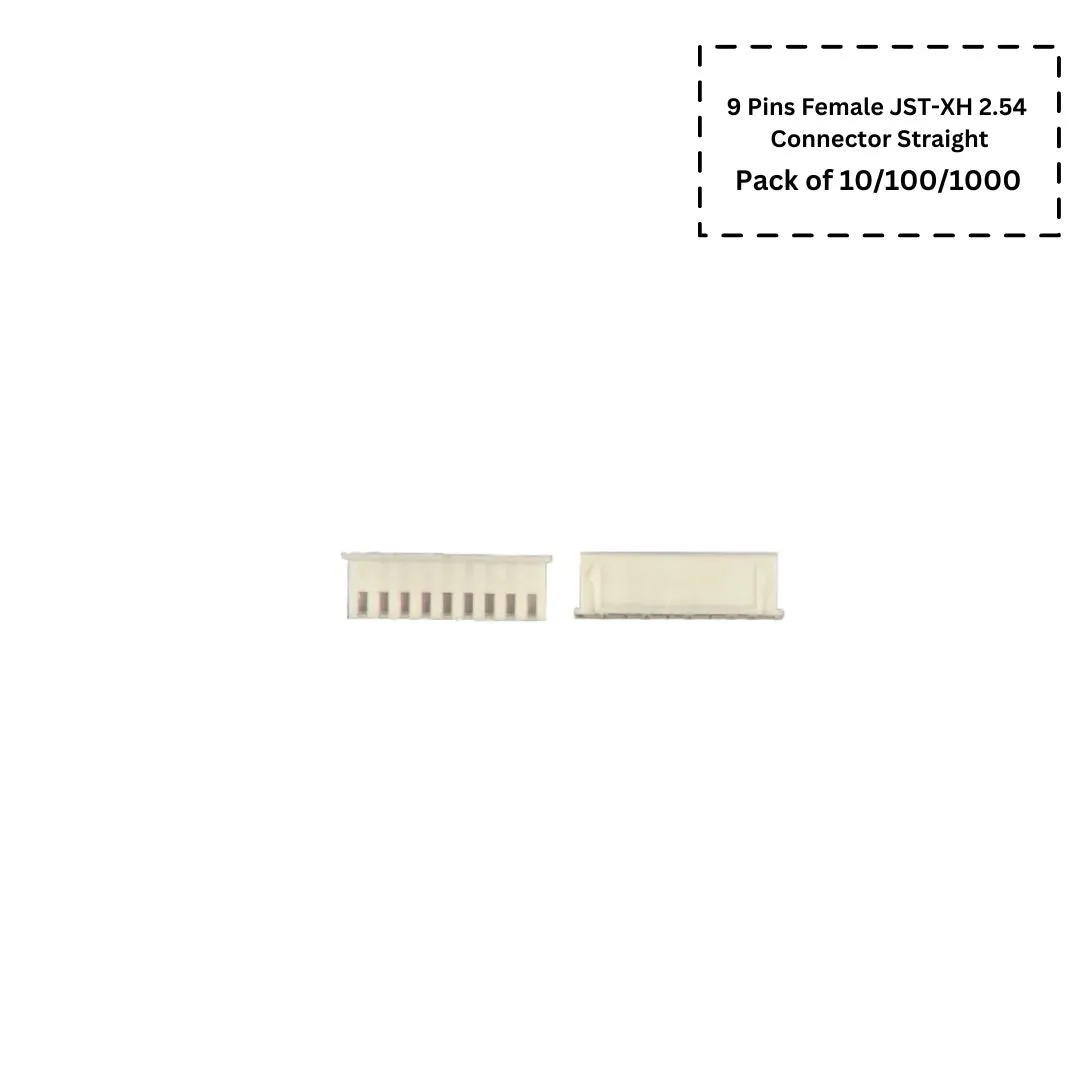

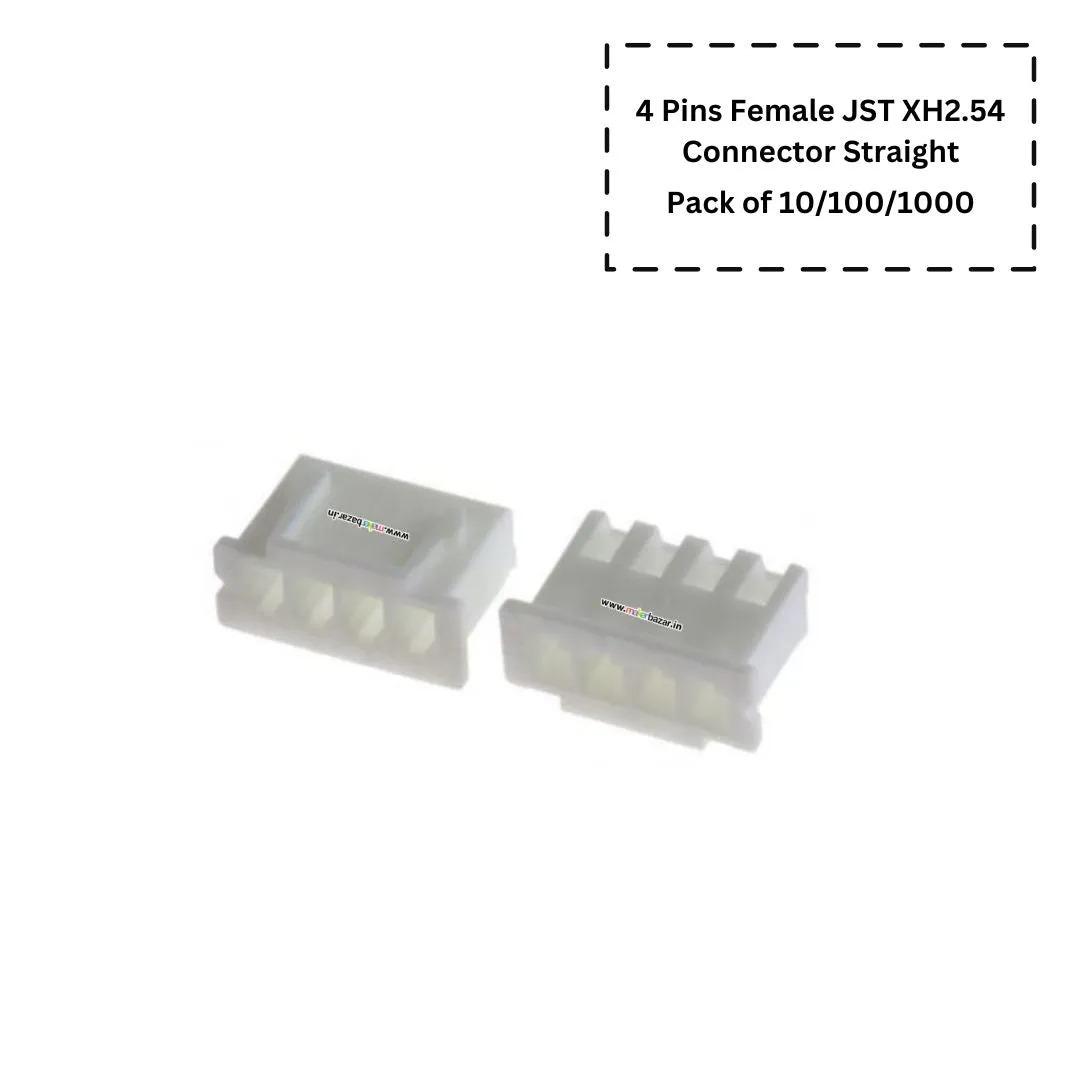

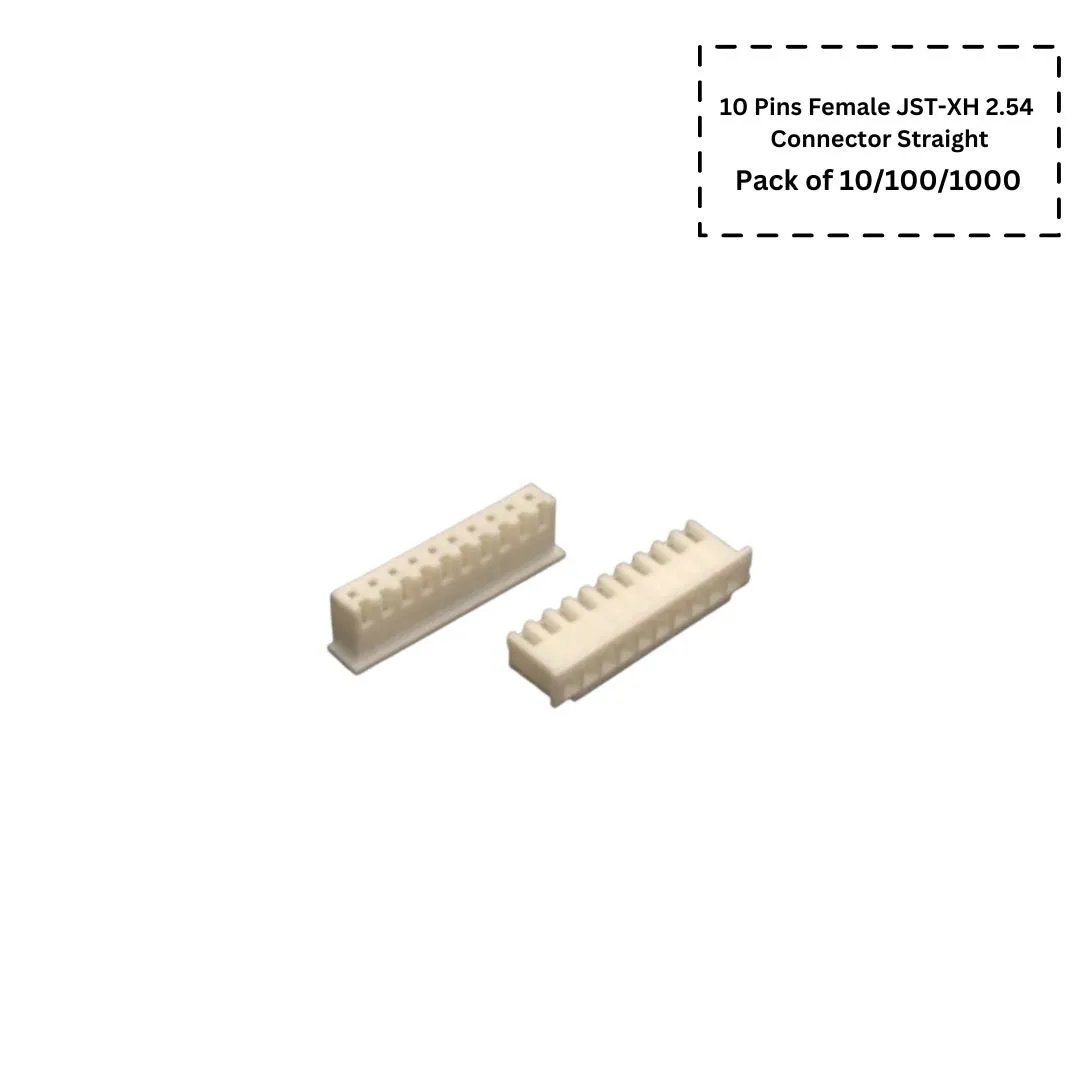

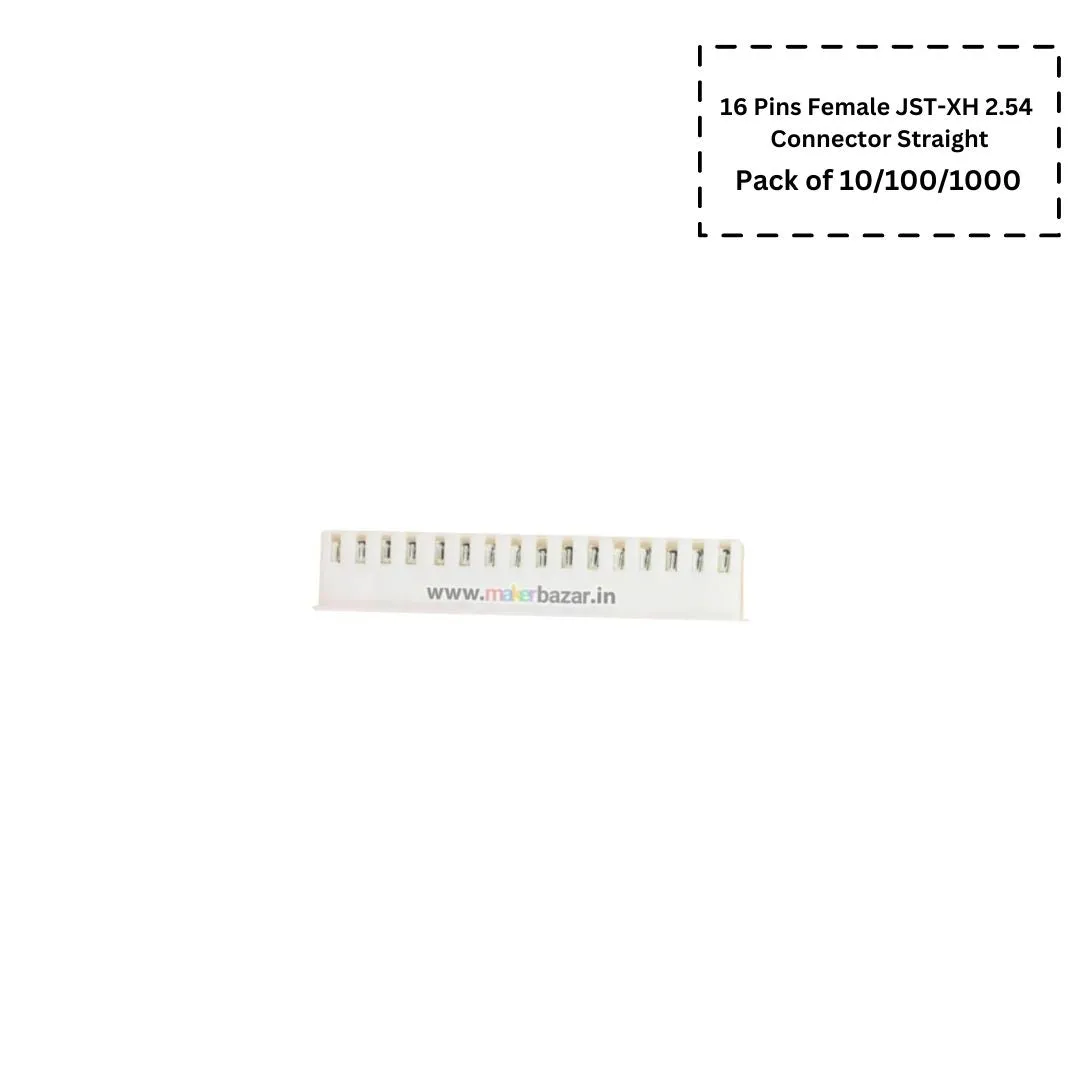

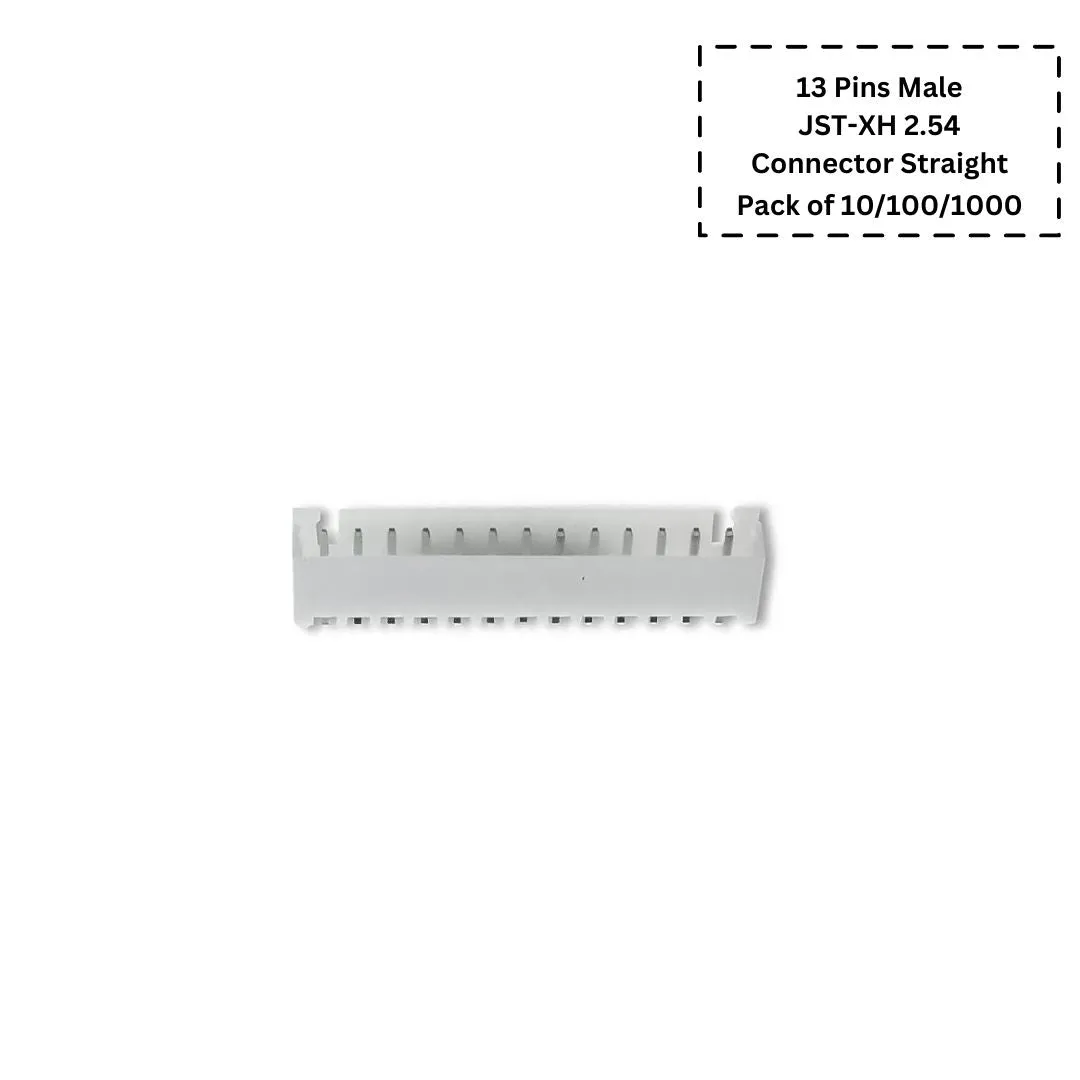

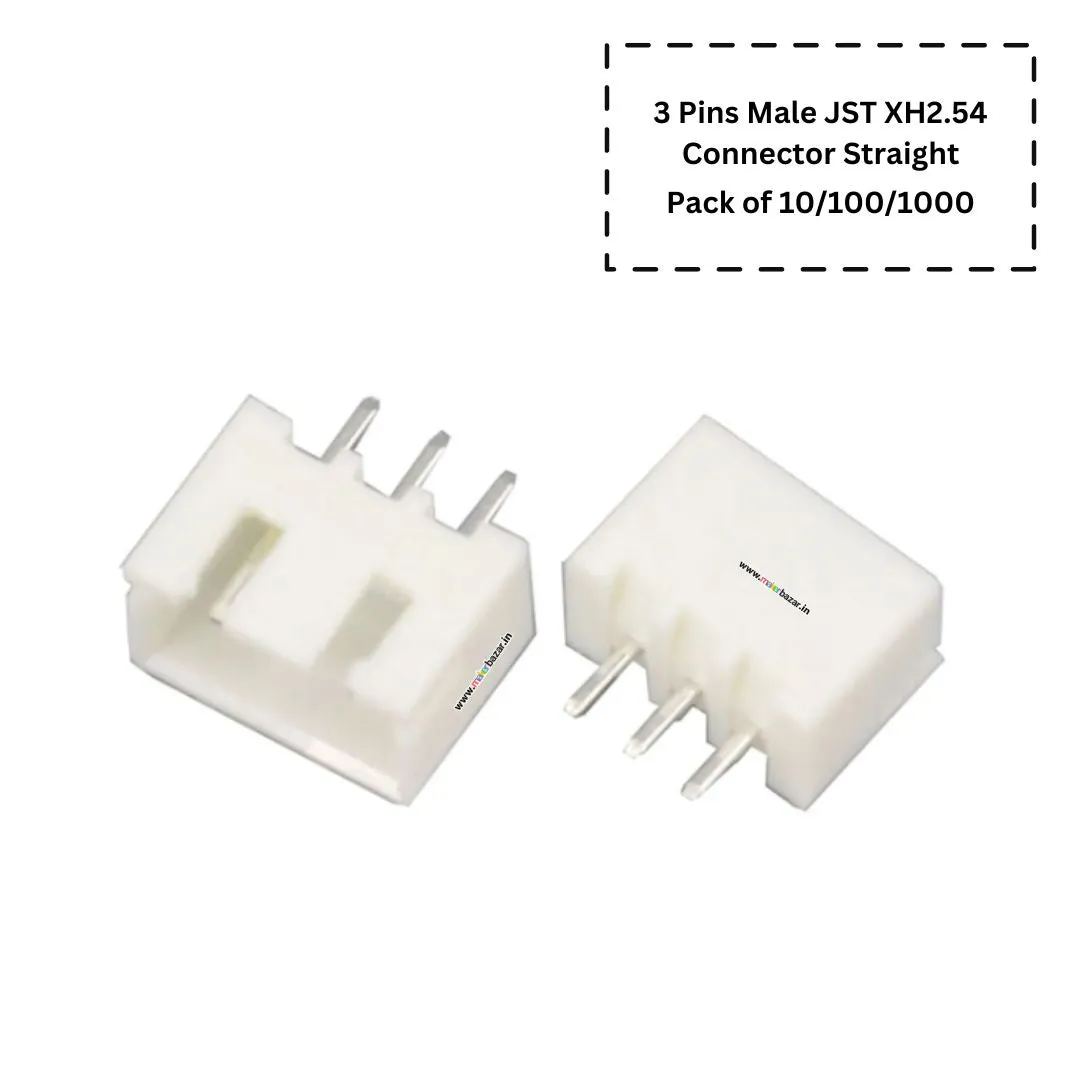

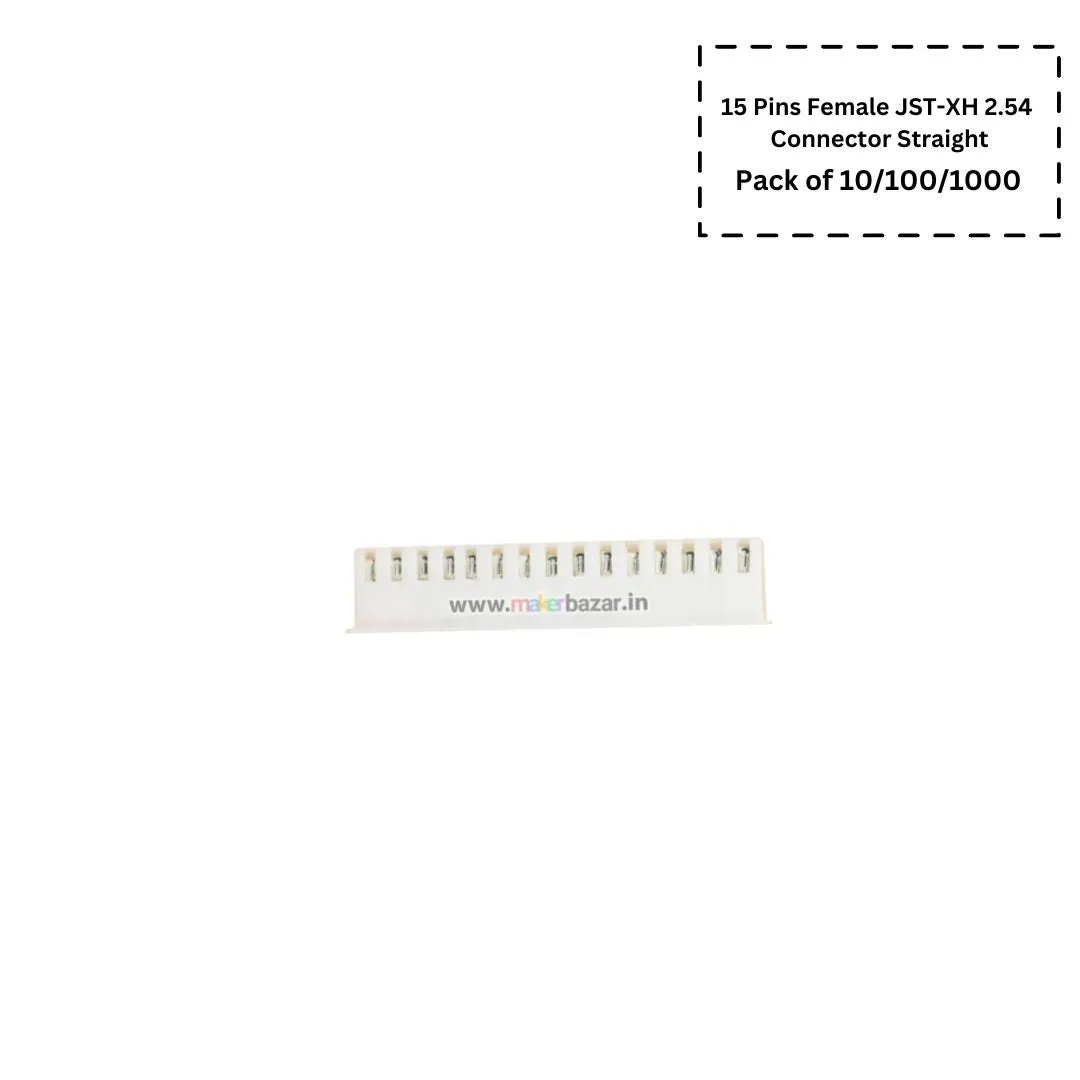

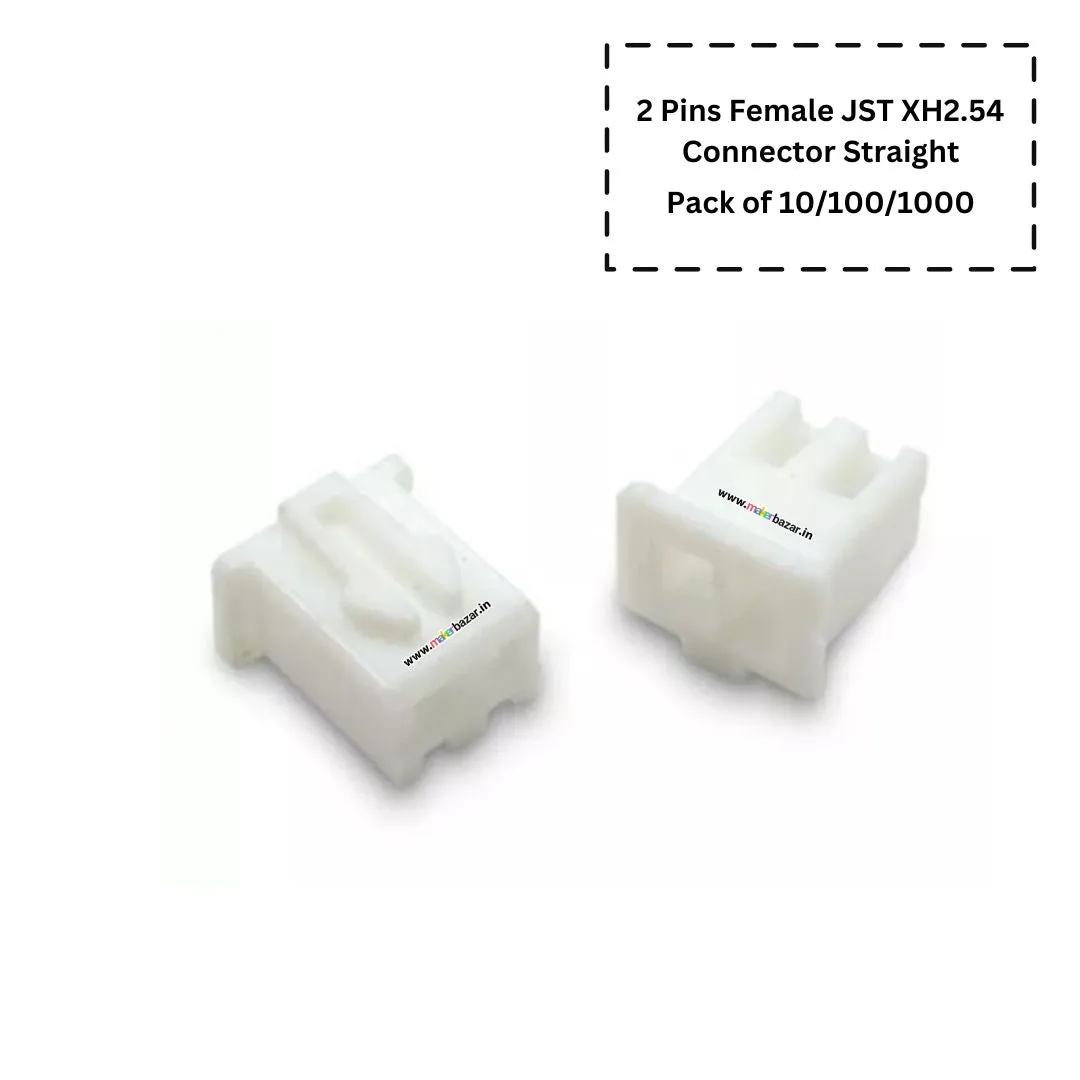

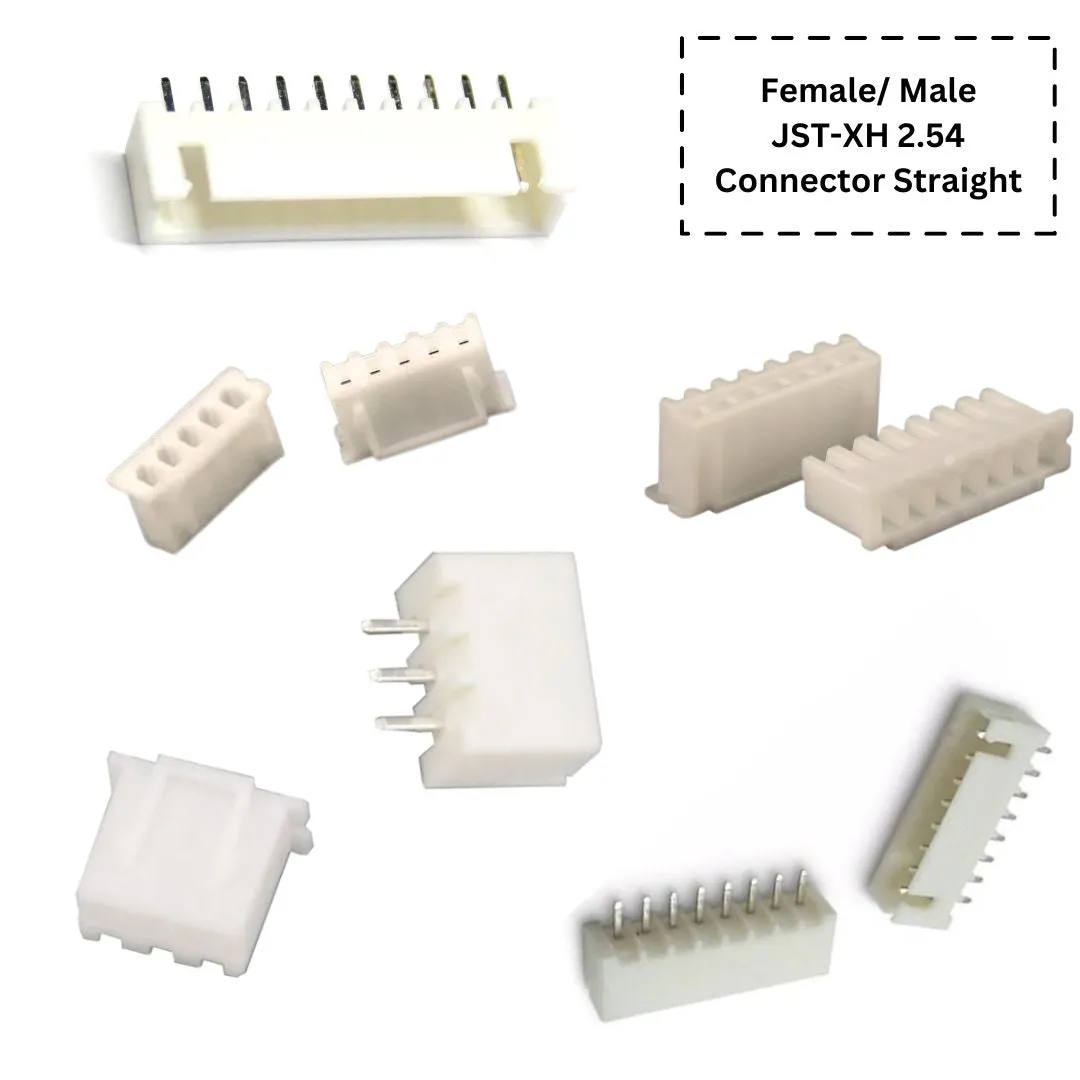

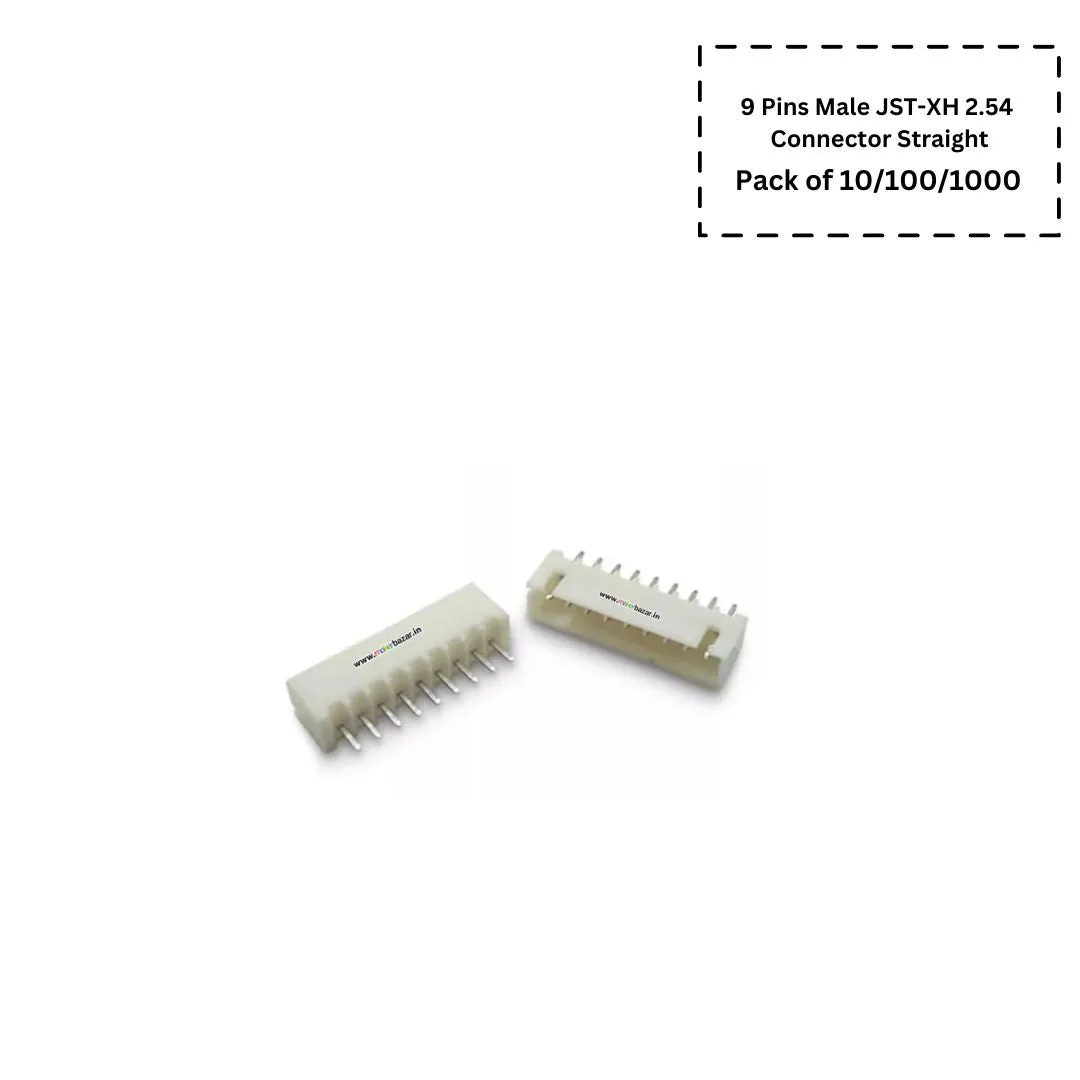

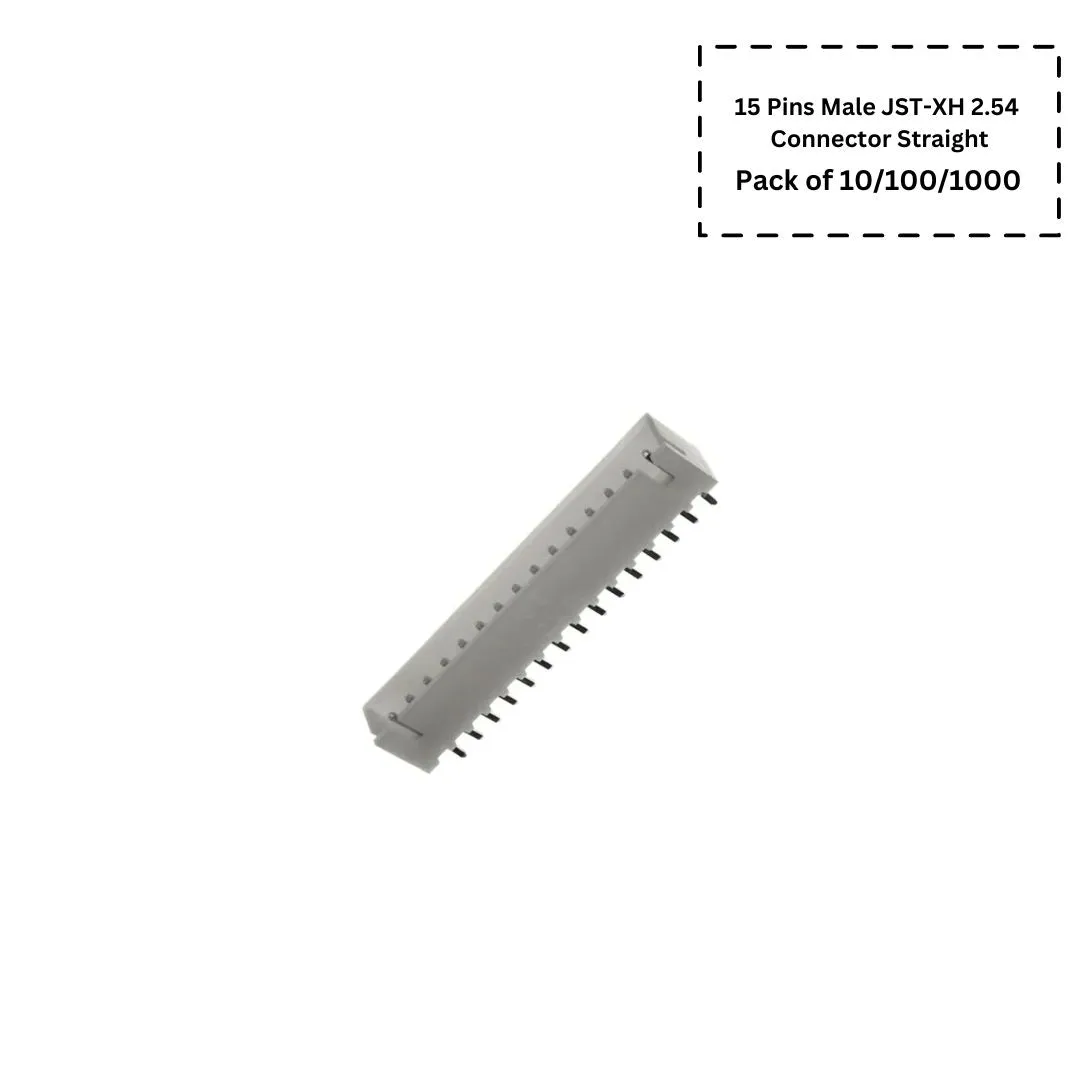

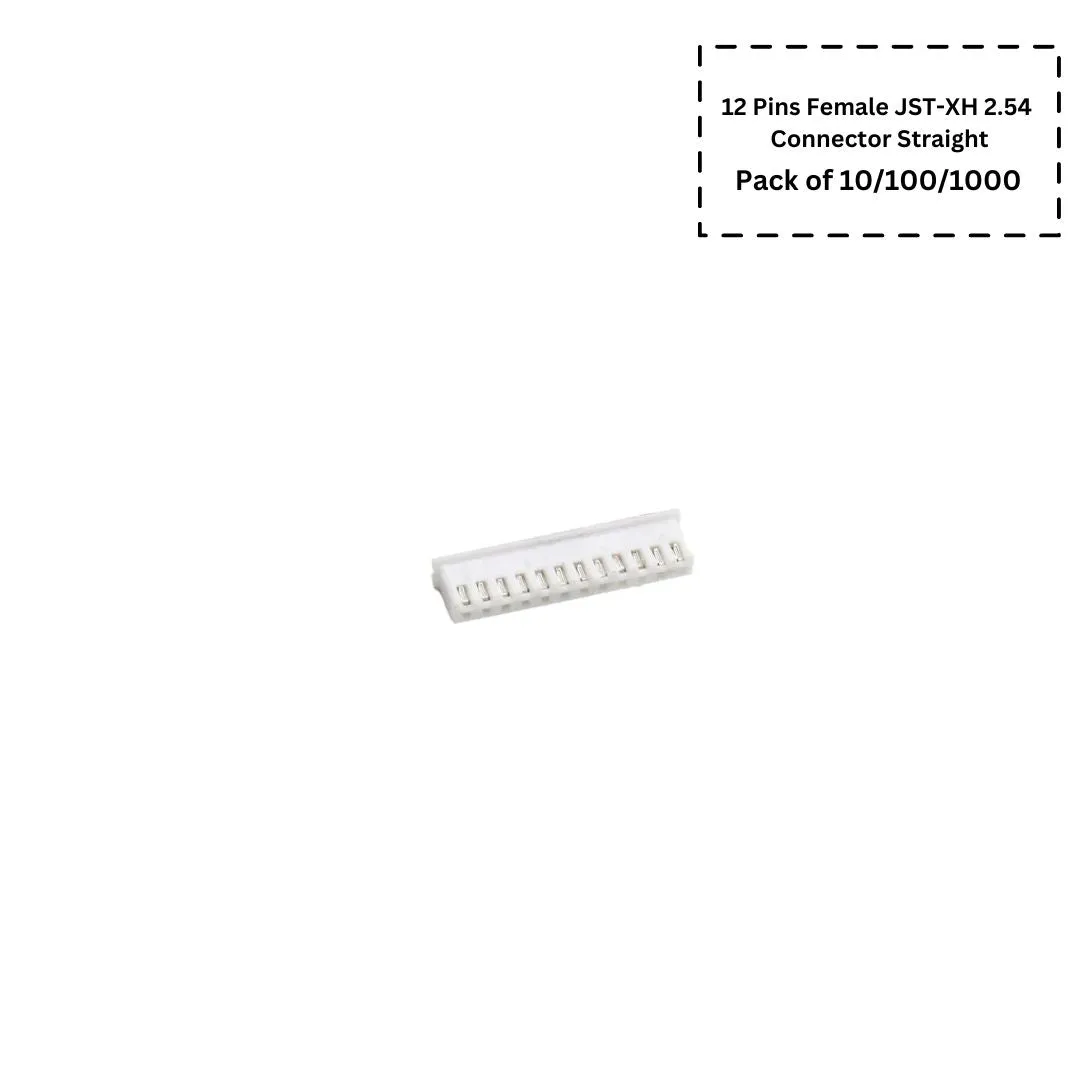

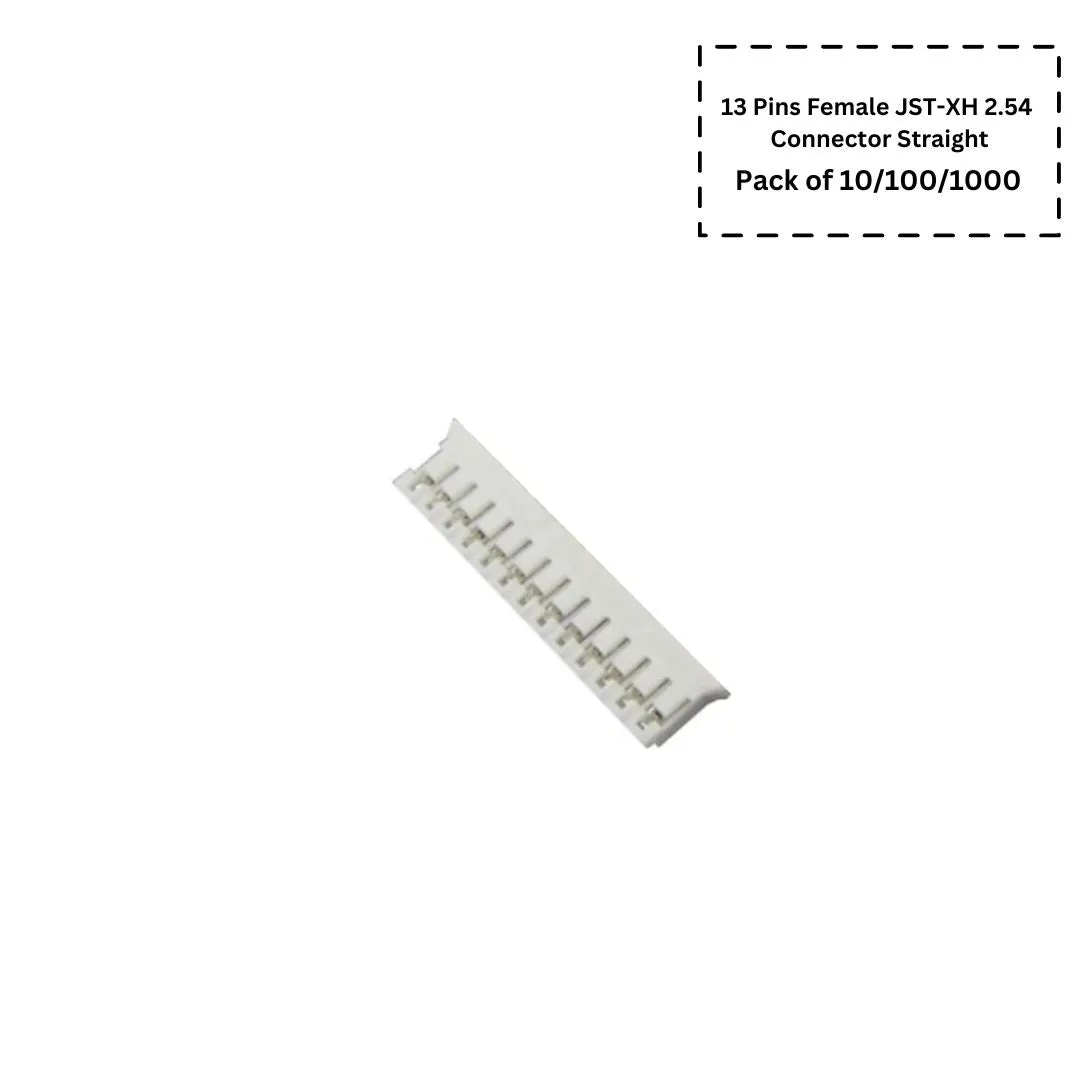

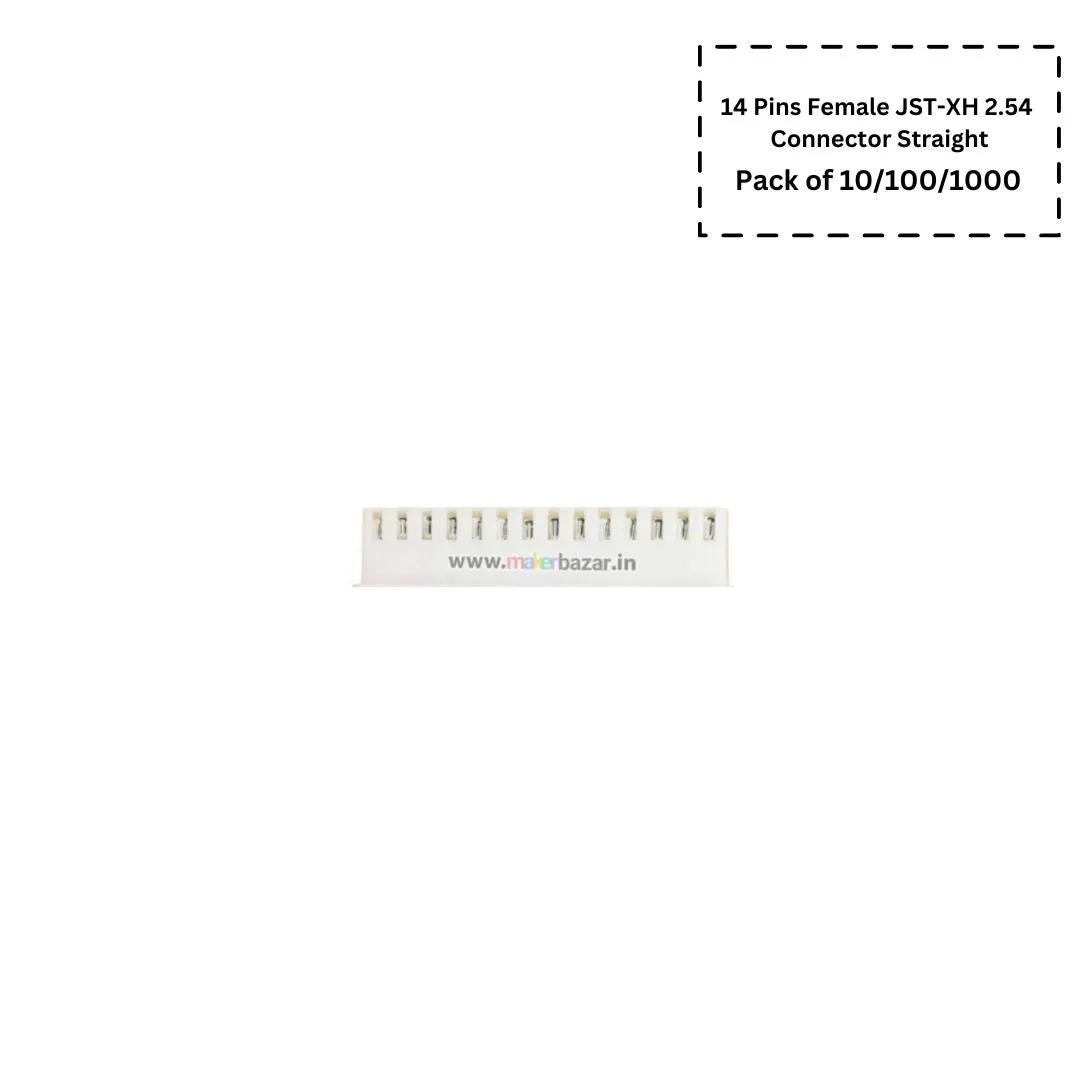

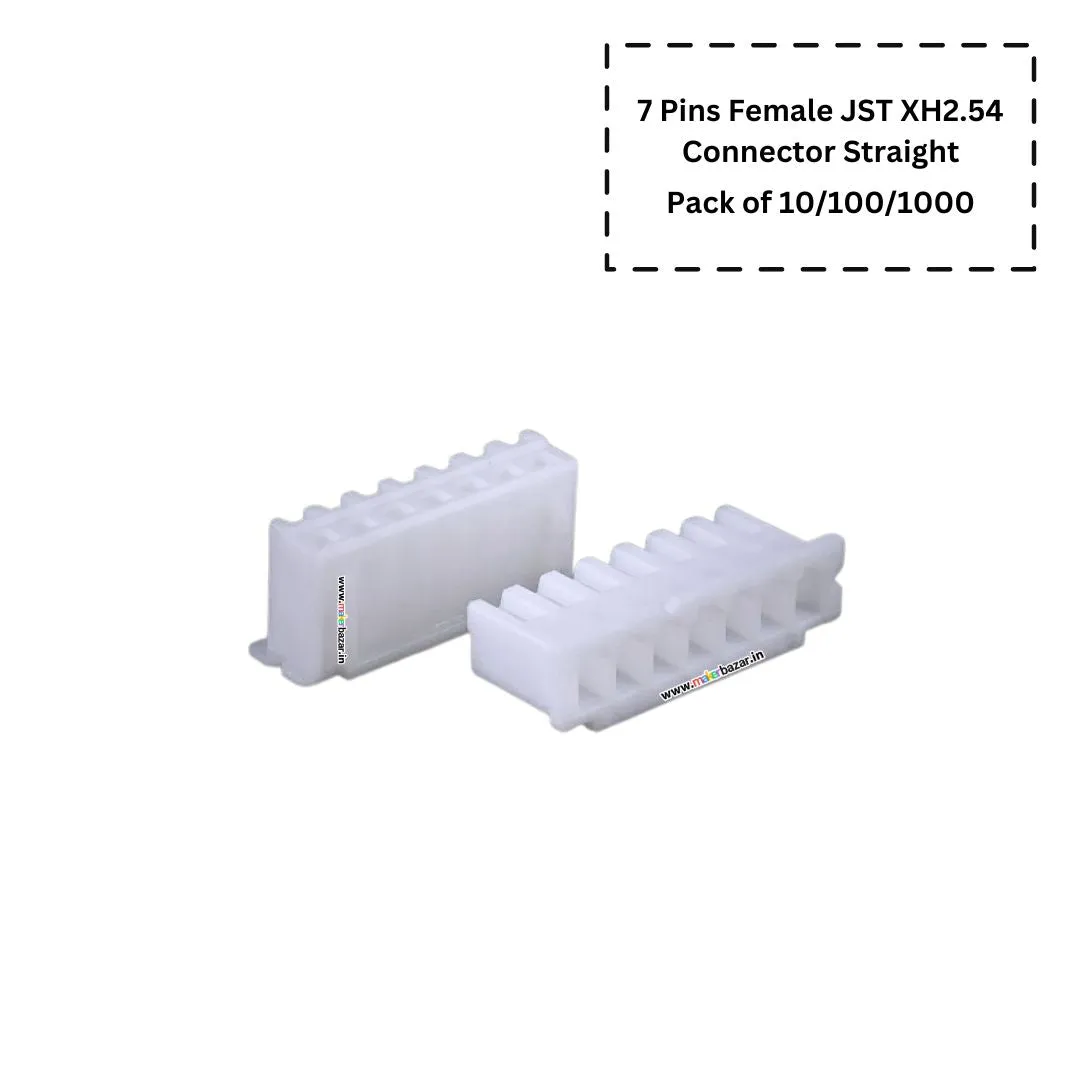

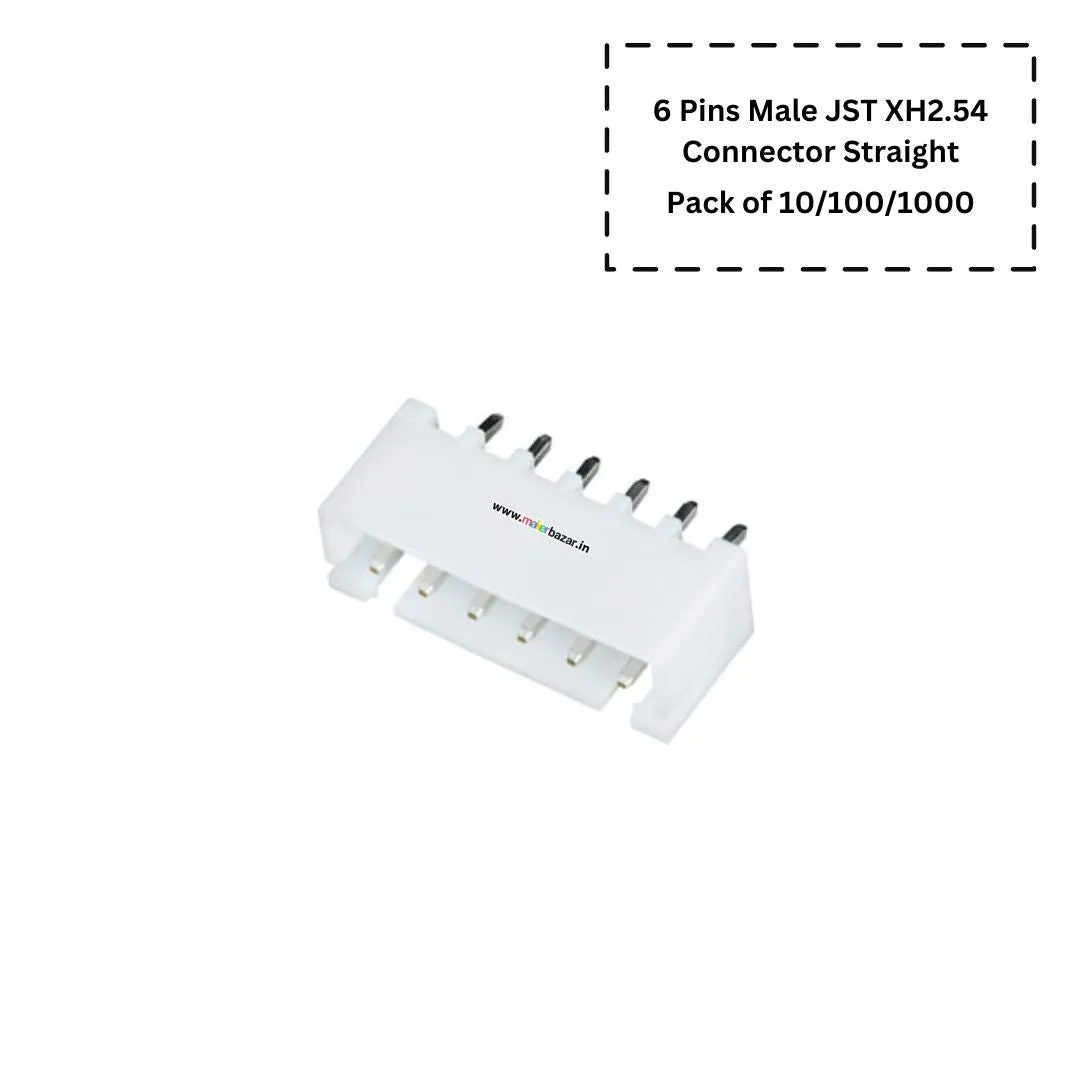

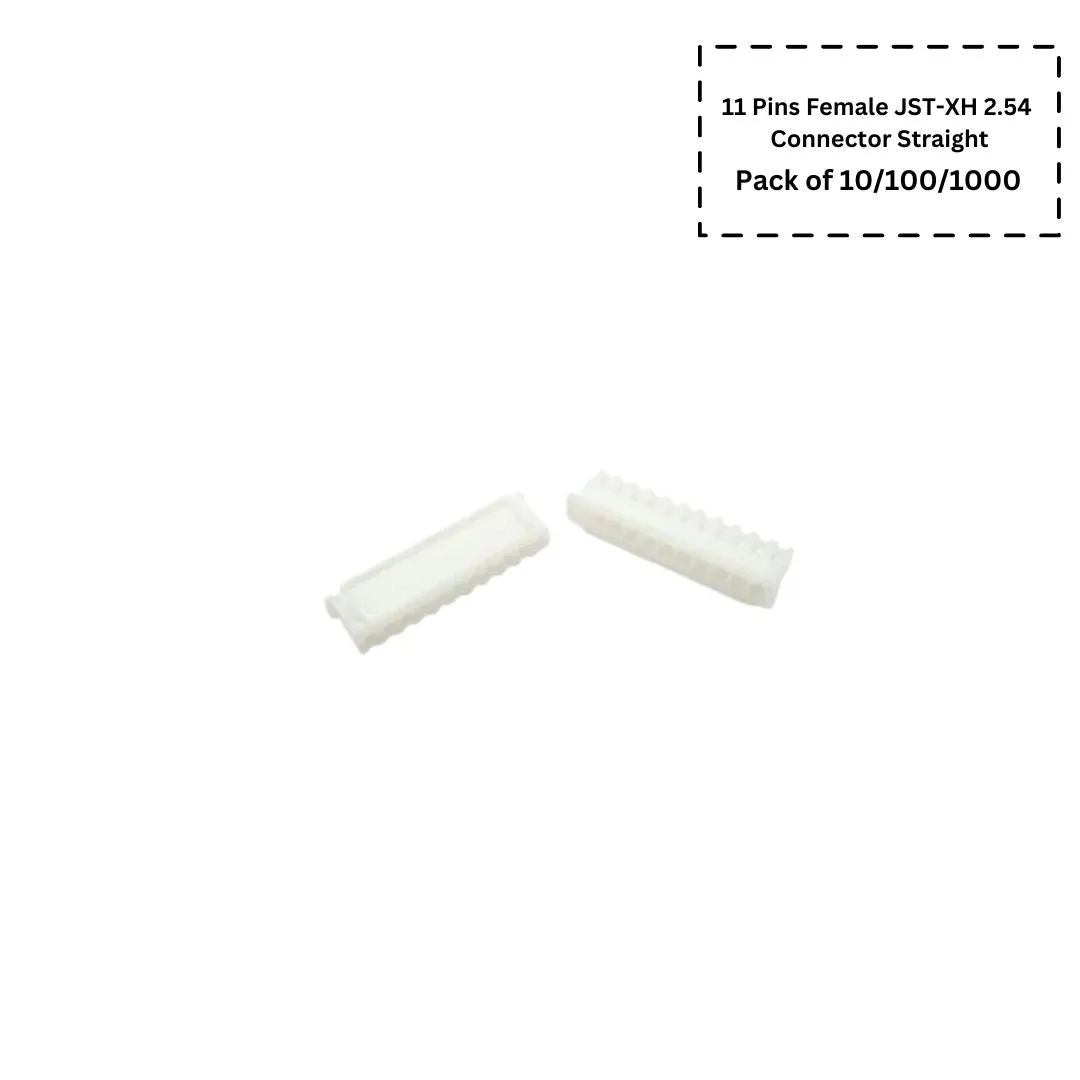

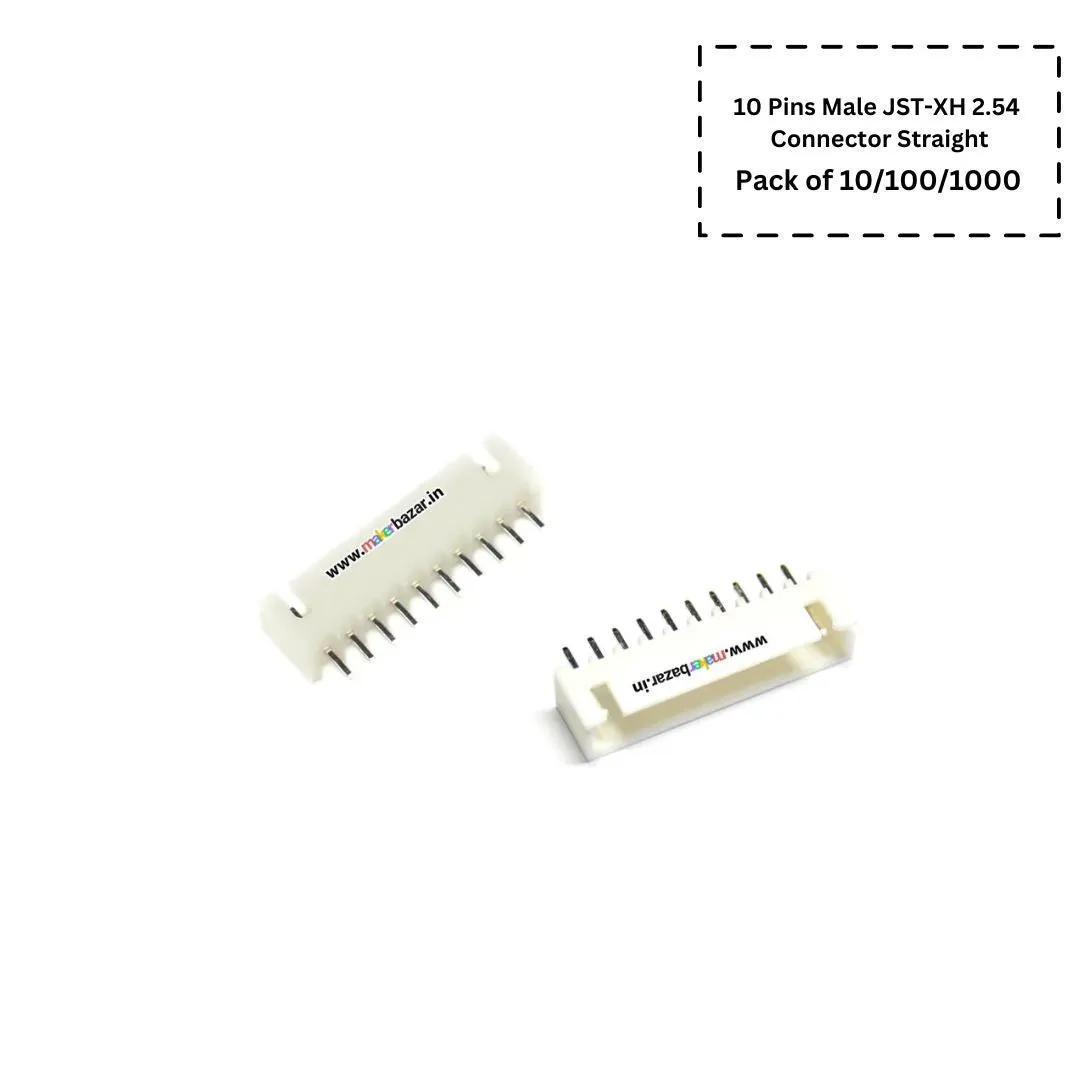

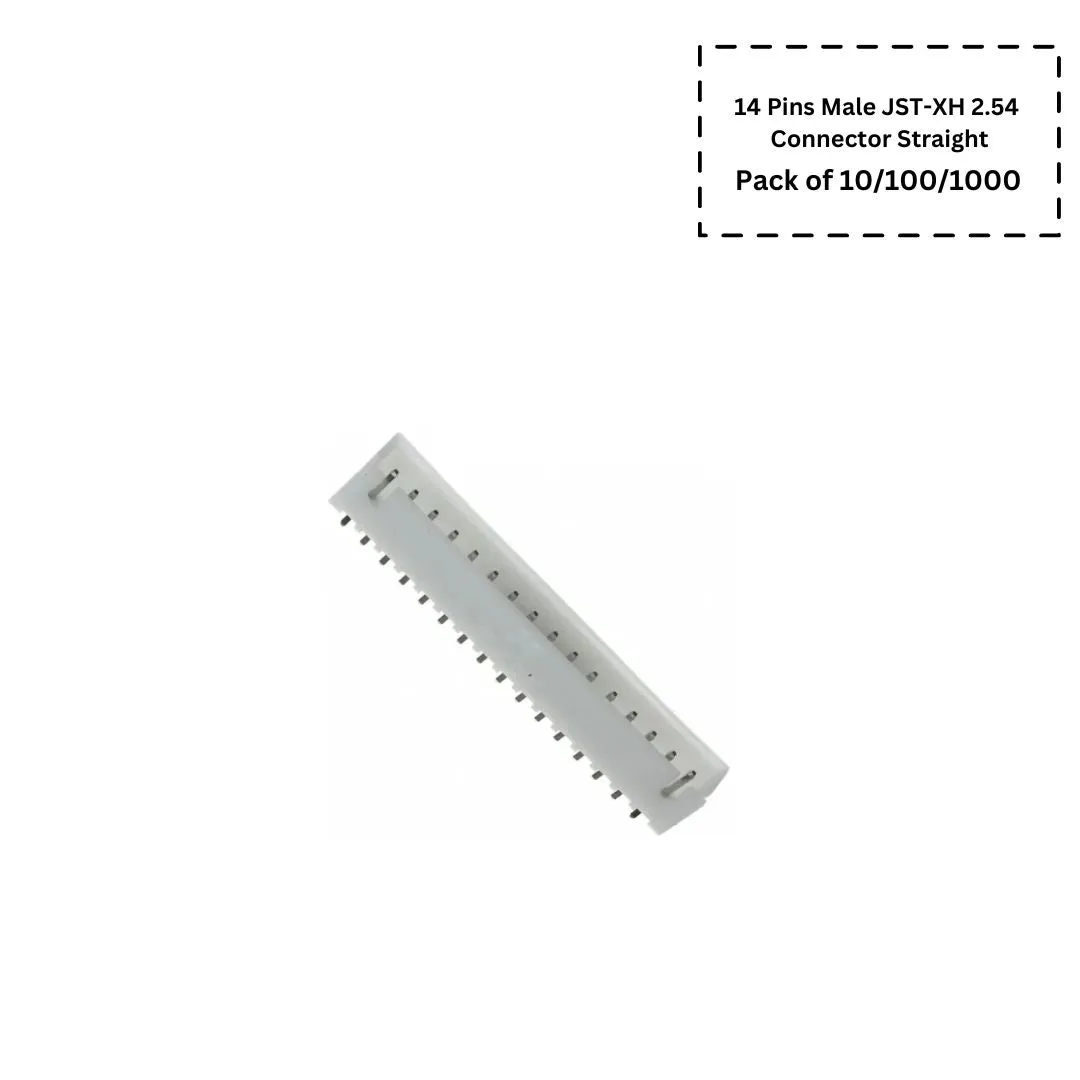

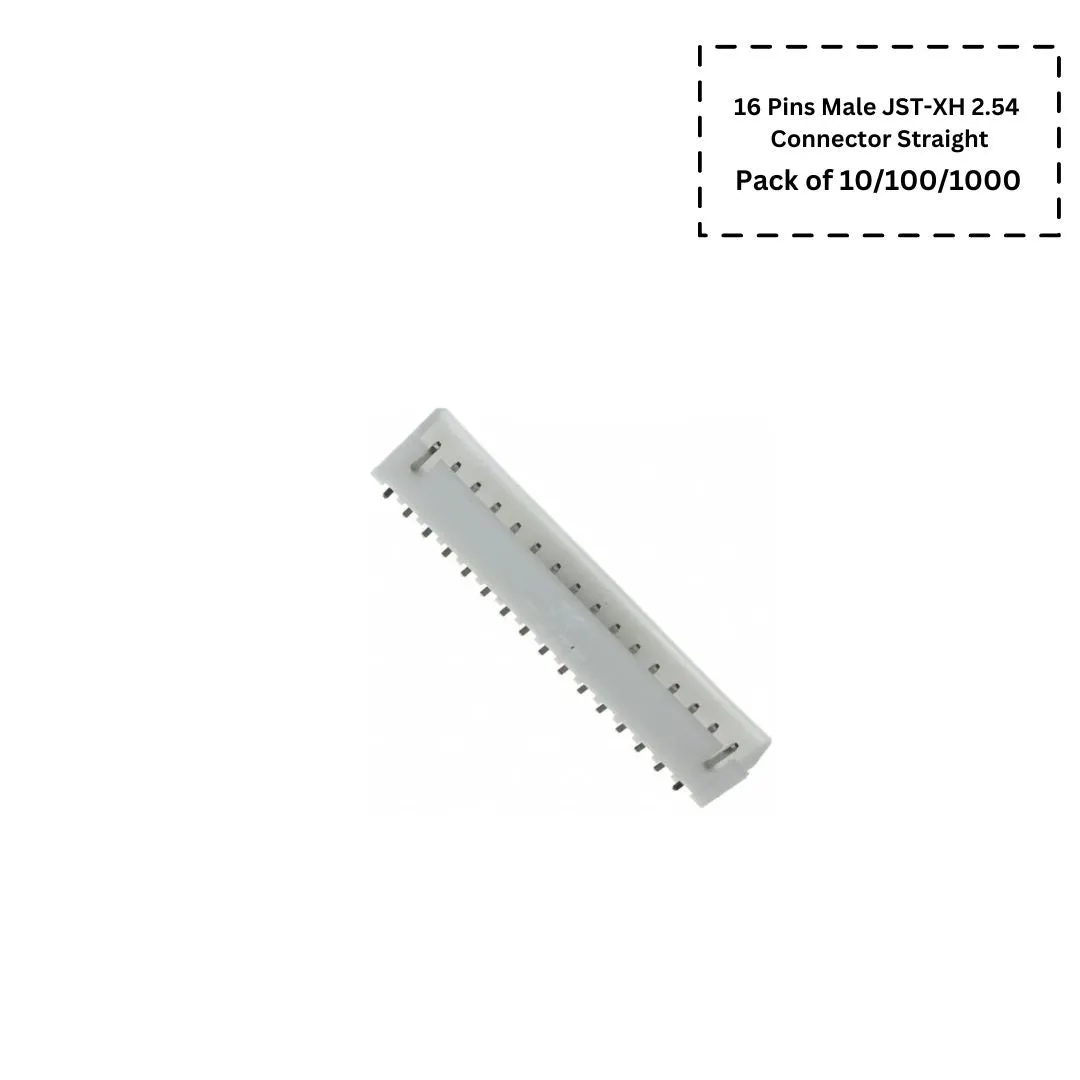

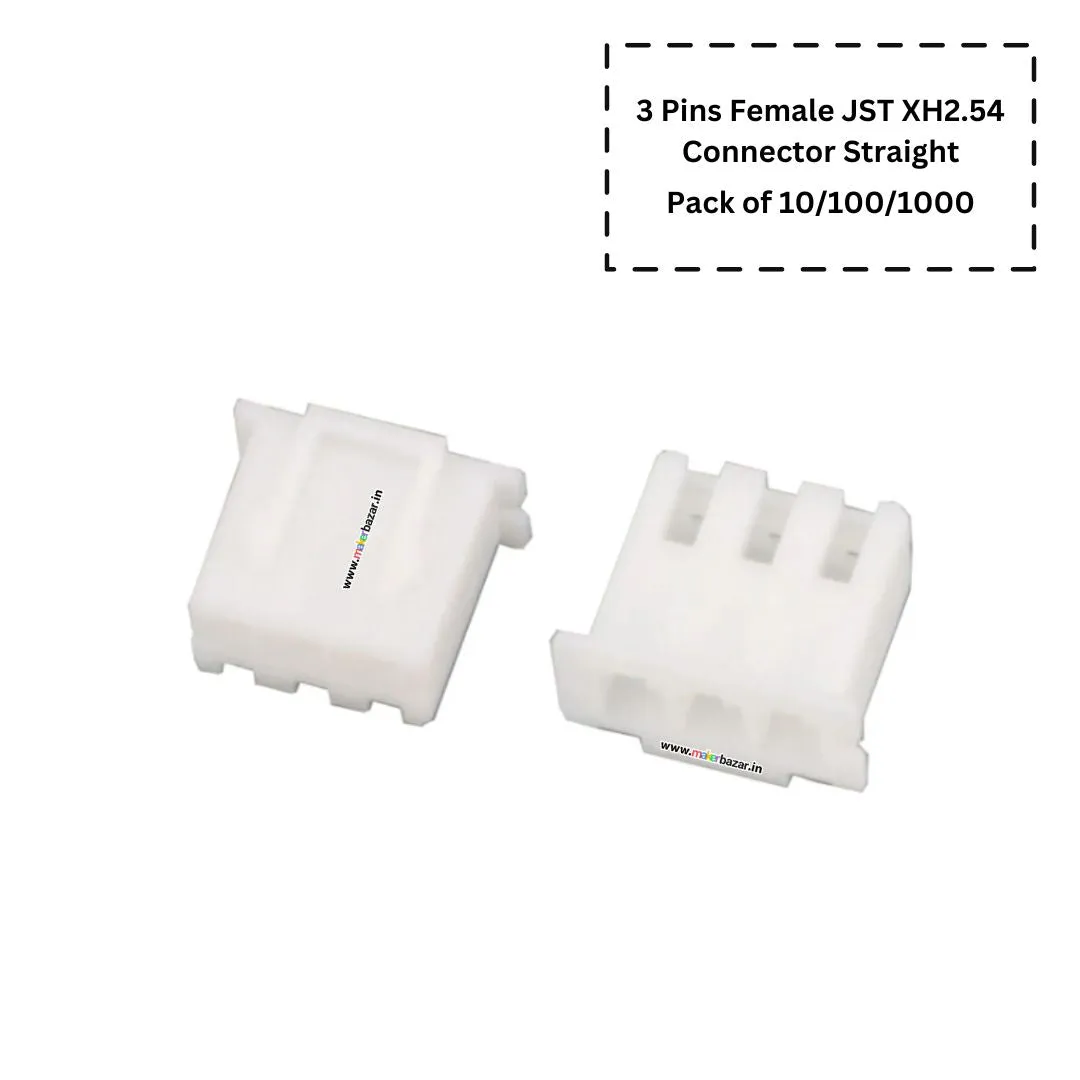

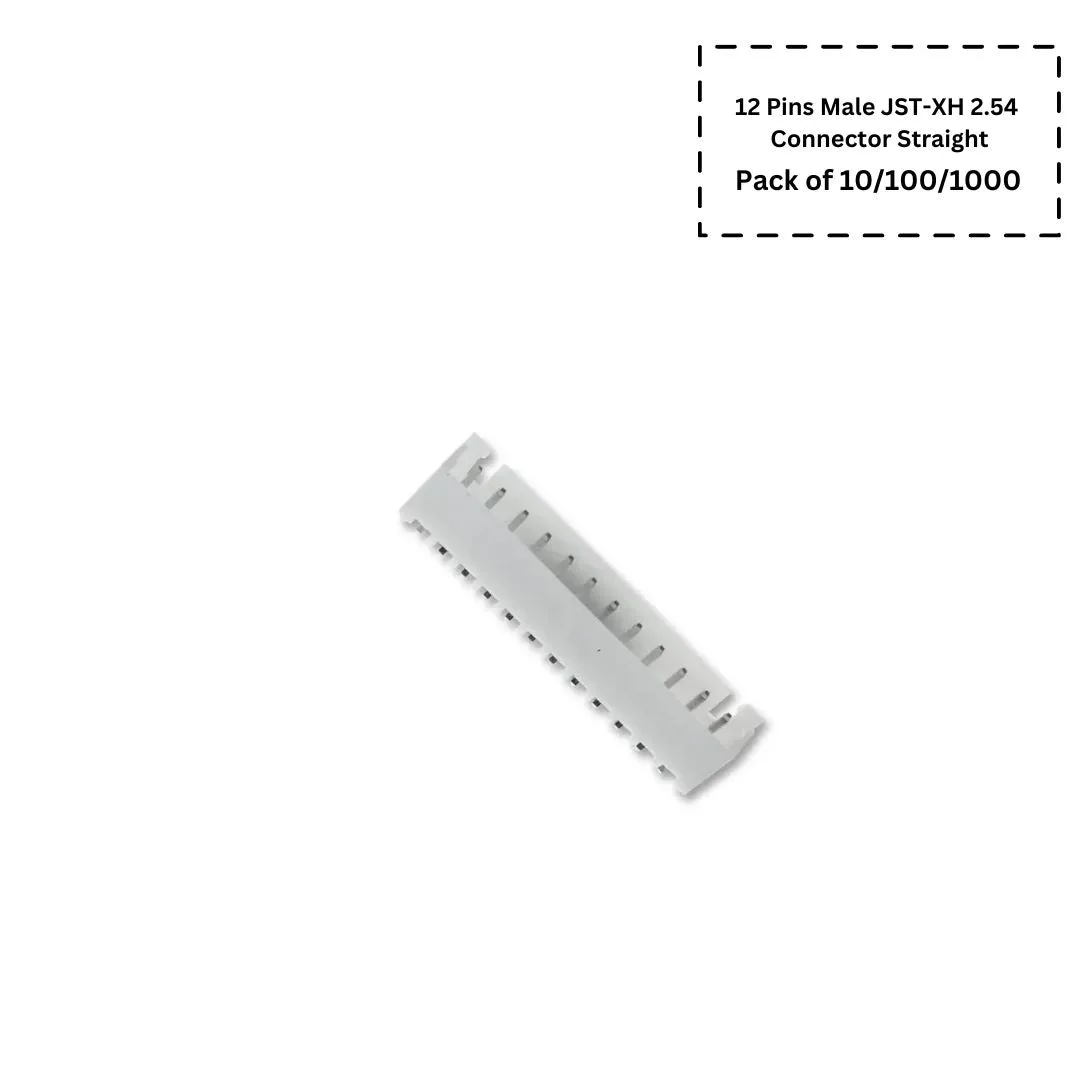

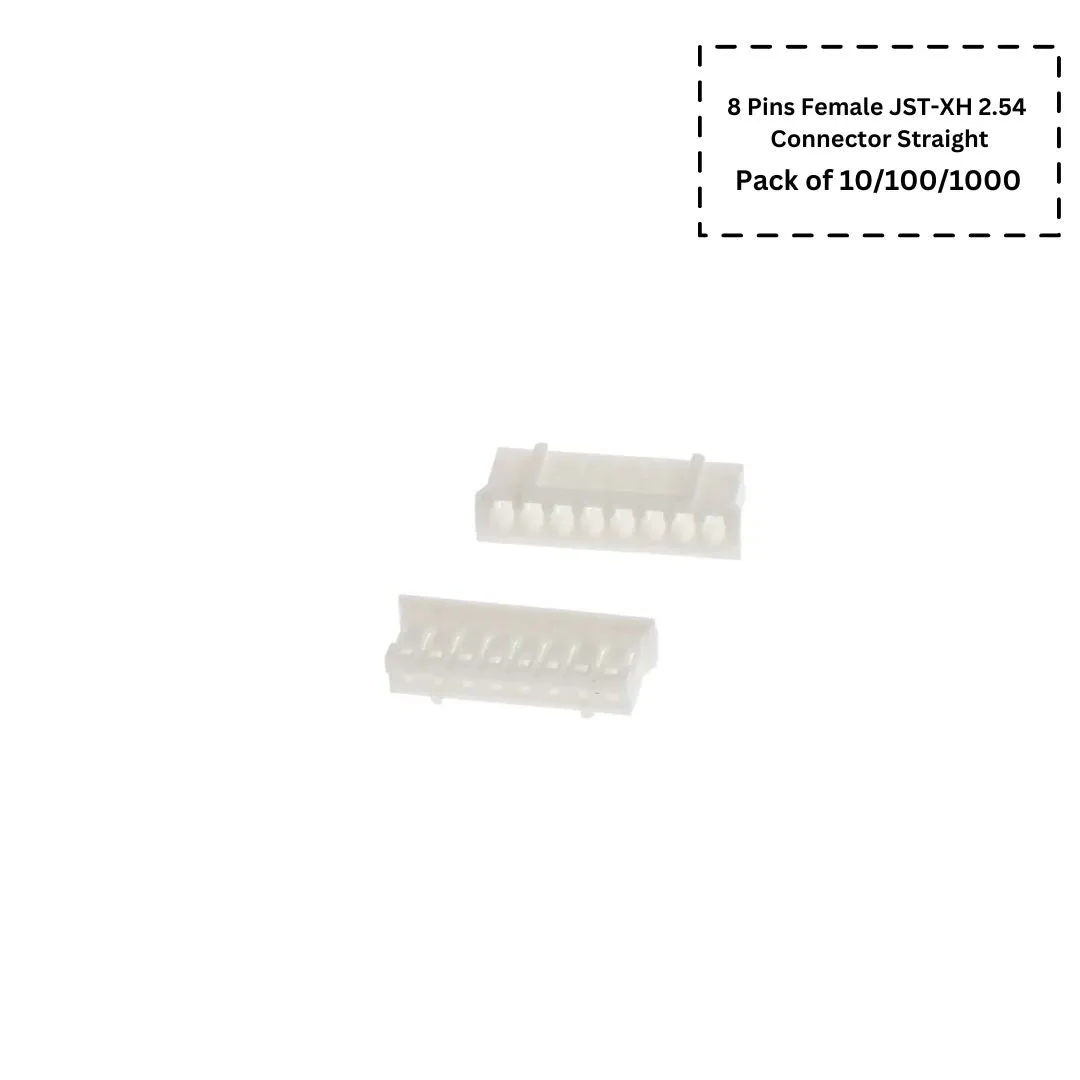

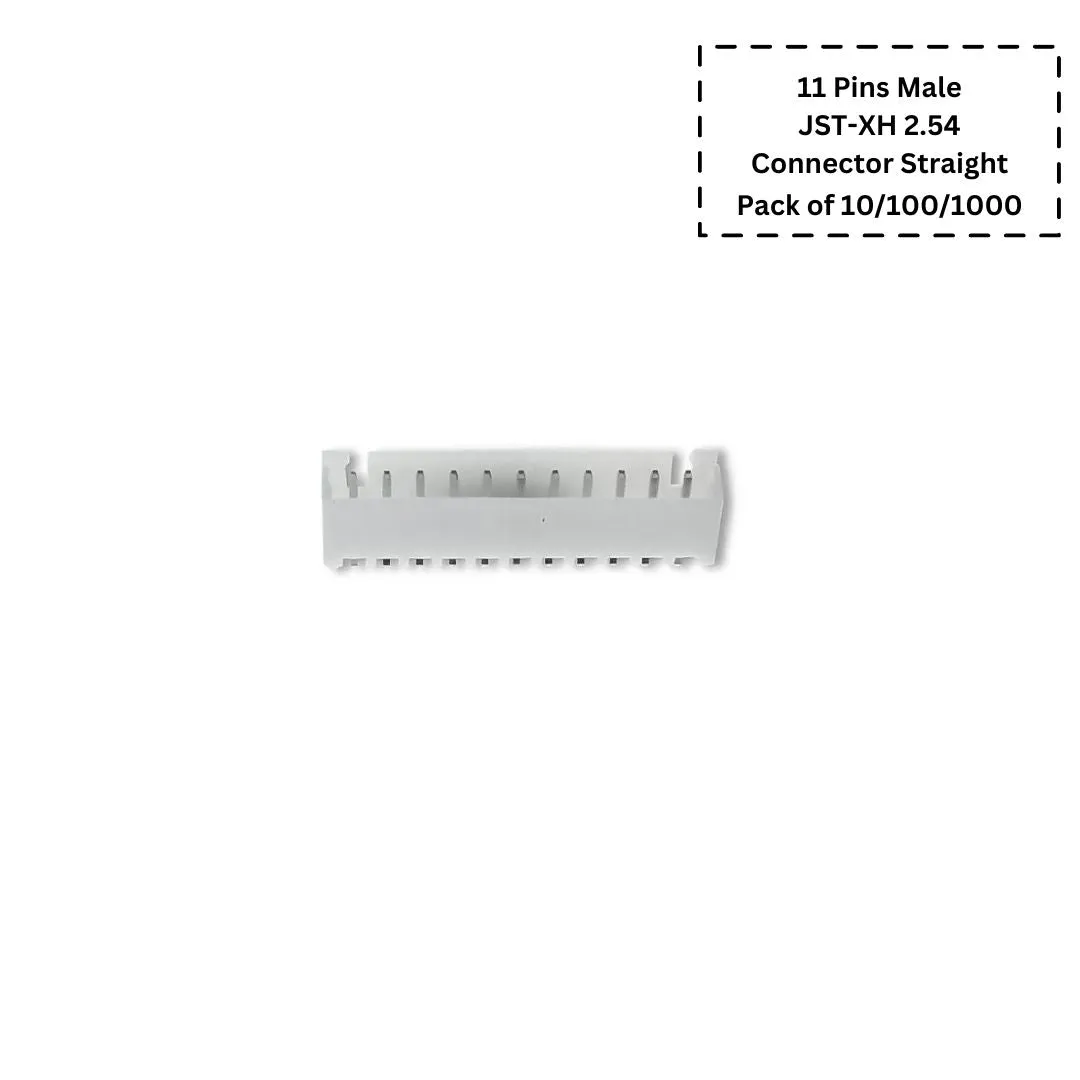

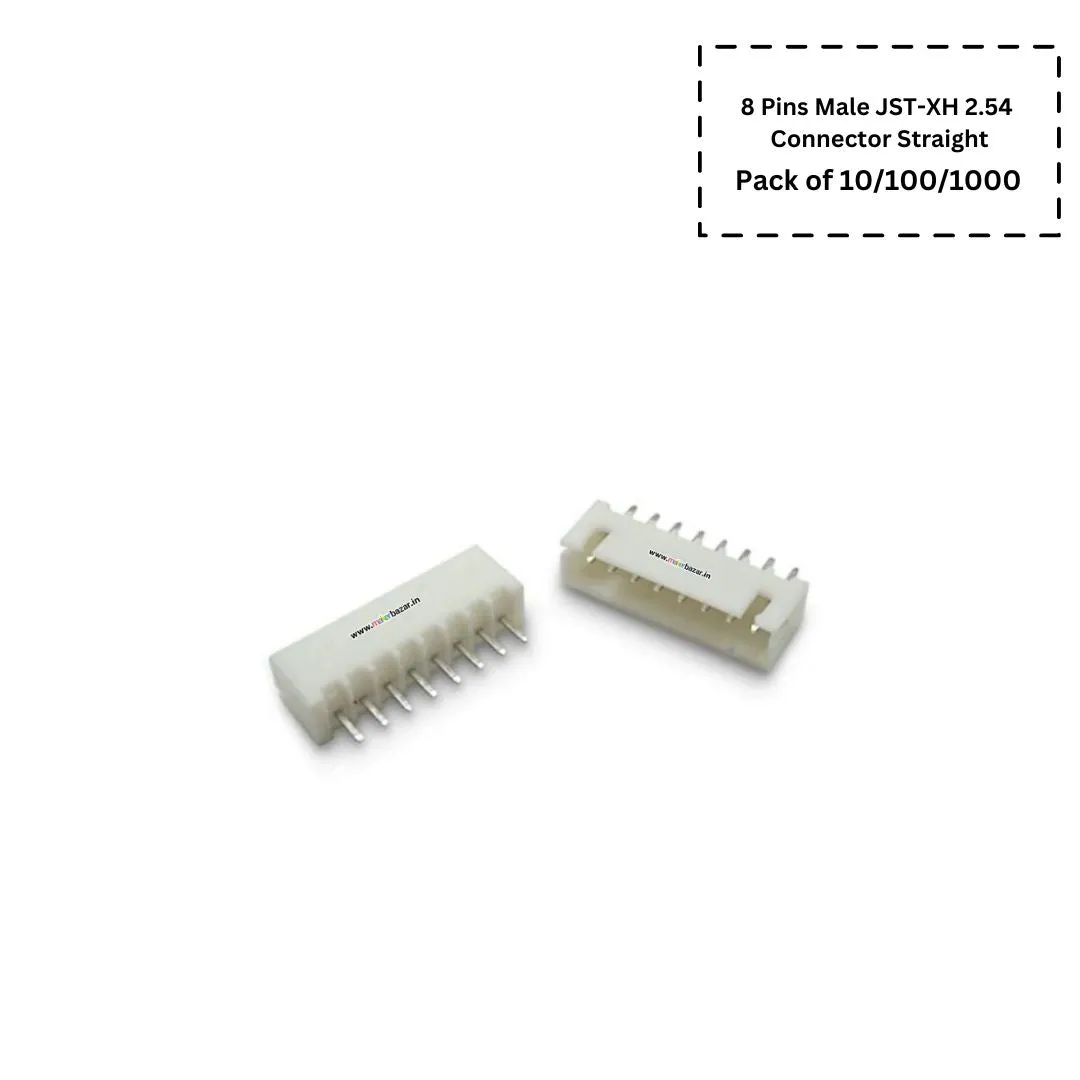

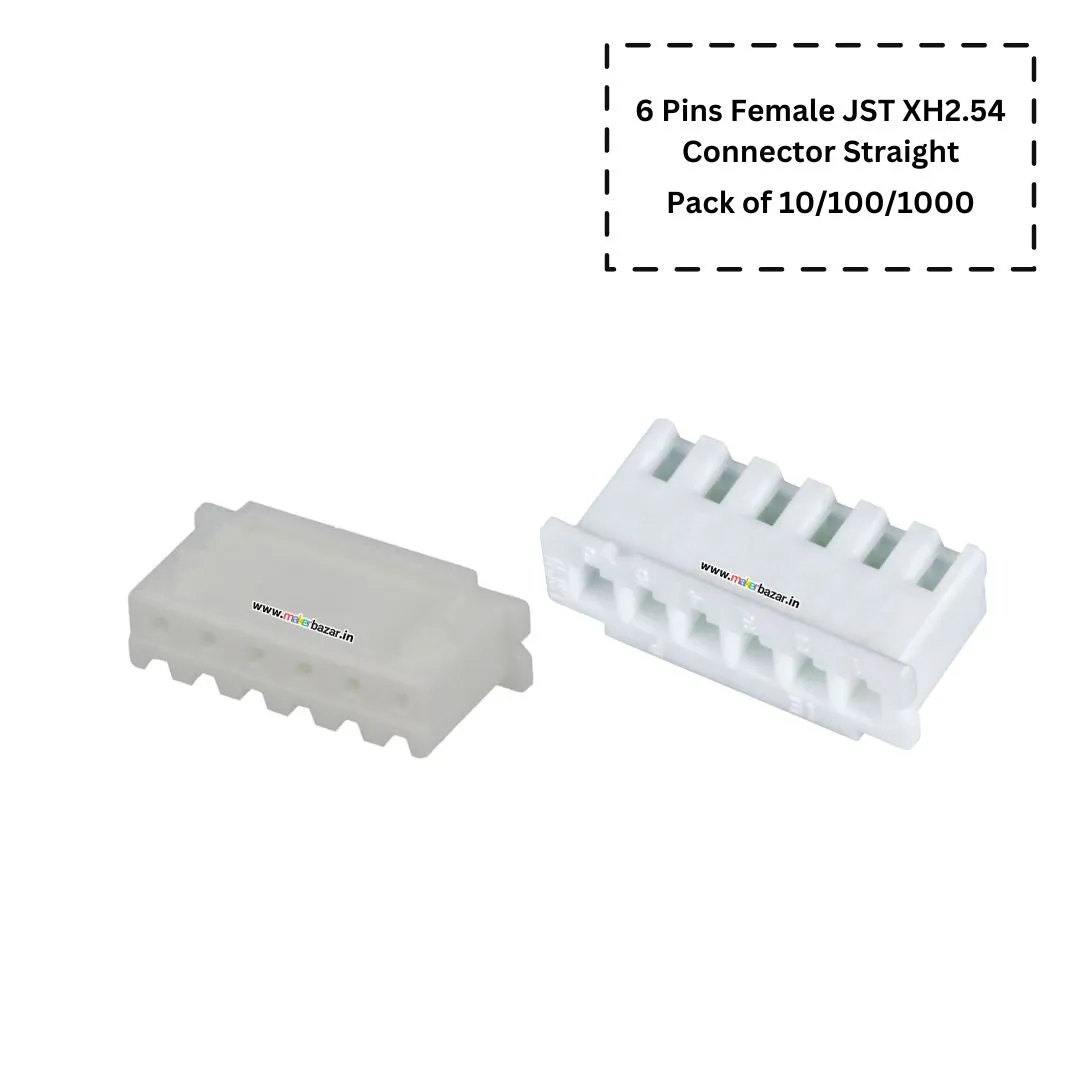

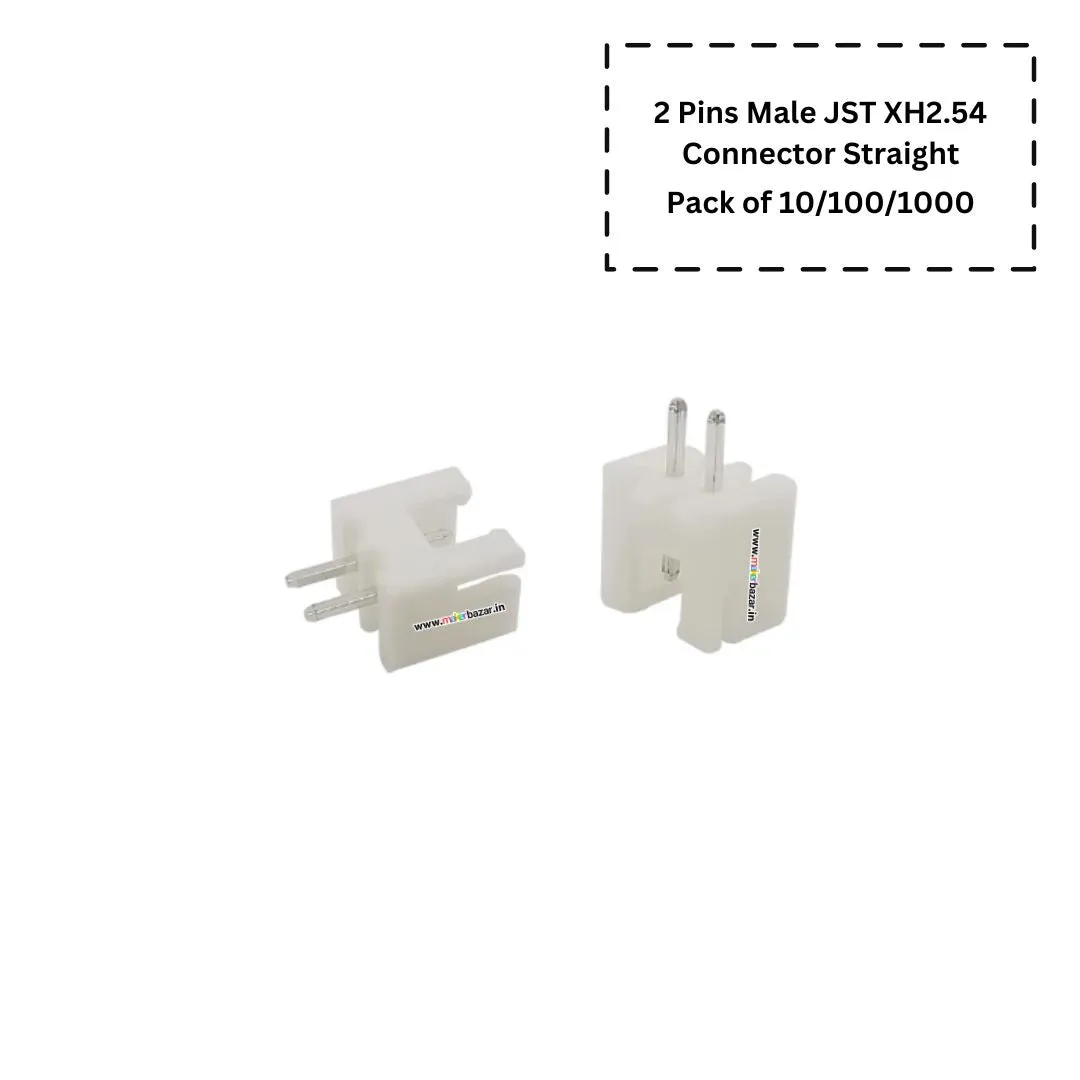

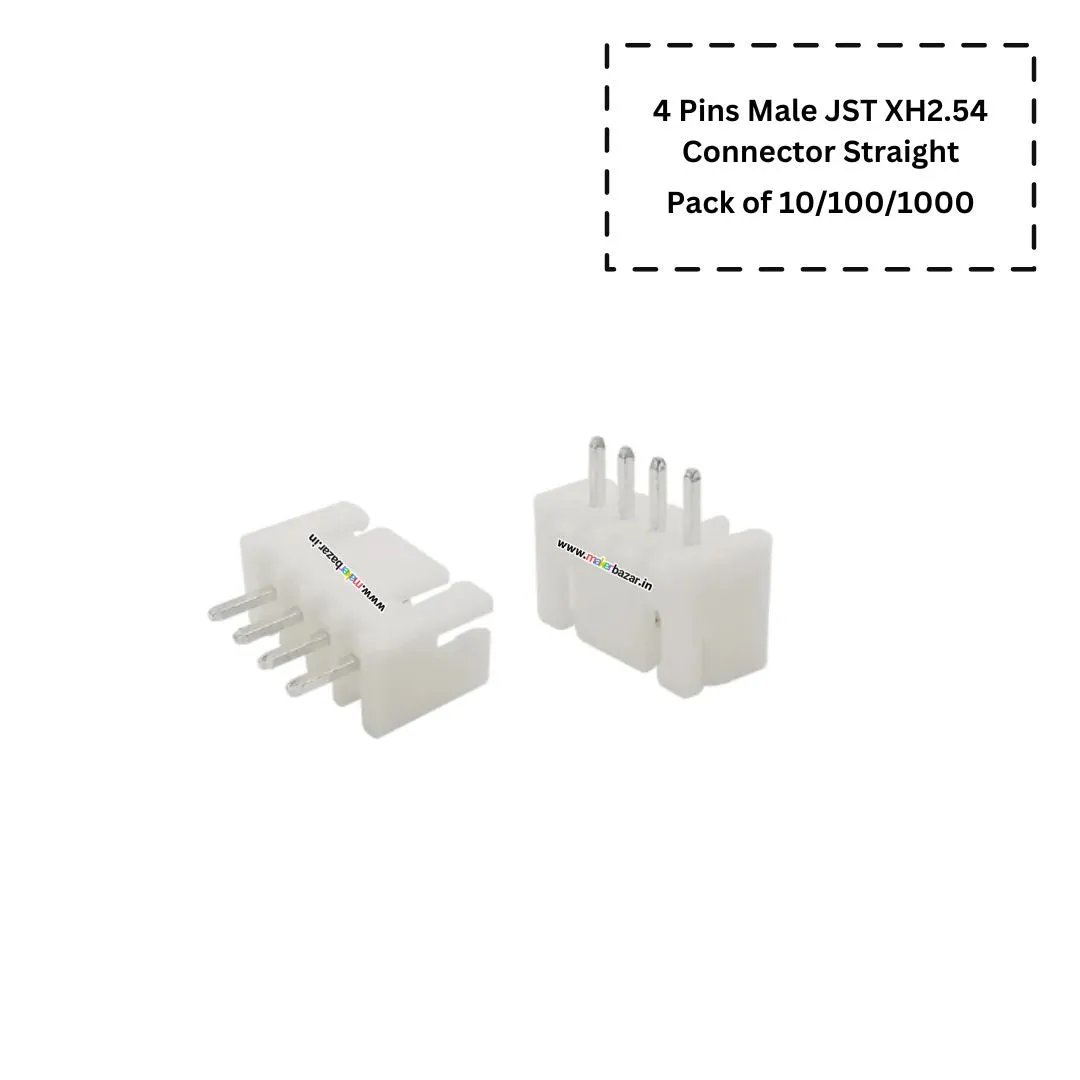

2515 JST XH Series Dis-Connectable Crimp Style Shrouded Header Straight Connectors

The JST XH Series 2515 Dis-Connectable Crimp Style Shrouded Header Straight Connectors are highly reliable and widely used connectors known for their compact design and versatile applications.

General Information

• Series: XH
• Type: Shrouded Header, Straight
• Part Number: 2515 (Series specific)

Features

• Shrouded Design: The connectors feature a shrouded header which provides protection against misalignment and ensures secure mating with the corresponding housing.
• Compact Size: Designed for use in high-density applications, the connectors offer a compact form factor without compromising performance.
• Crimp Style: These connectors are designed to be used with crimp terminals, which allows for secure and reliable electrical connections.
• Straight Orientation: The pins are arranged in a straight configuration, which is suitable for various PCB layout designs.

Electrical Specifications

• Current Rating: Up to 3A per contact
• Voltage Rating: 250V AC/DC
• Contact Resistance: Maximum of 20 mΩ
• Insulation Resistance: Minimum of 1000 MΩ at 500V DC
• Withstanding Voltage: 1000V AC/minute

Mechanical Specifications

• Contact Material: Phosphor bronze with tin plating
• Housing Material: Nylon 66, UL 94V-0 rated
• Pitch: 2.5mm (0.098 inches)

Environmental Specifications

• Operating Temperature Range: -25°C to 85°C

Applications

• Consumer Electronics: Ideal for connections in consumer electronic devices such as TVs, audio systems, and appliances.
• Industrial Equipment: Used in industrial machinery for reliable power and signal connections.
• Automotive: Suitable for automotive applications due to its robust design and reliable performance.
• Medical Devices: Employed in medical devices where compact and reliable connections are crucial.

Advantages

• Reliability: The shrouded design ensures a secure connection and prevents improper mating.
• Versatility: Available in a variety of positions to fit different application needs.
• Ease of Use: Crimp style makes for easy assembly and maintenance.
