Product Details
＋
Description:

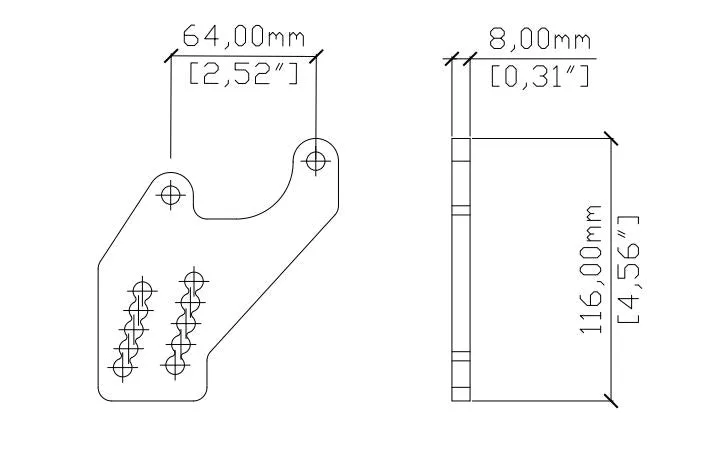

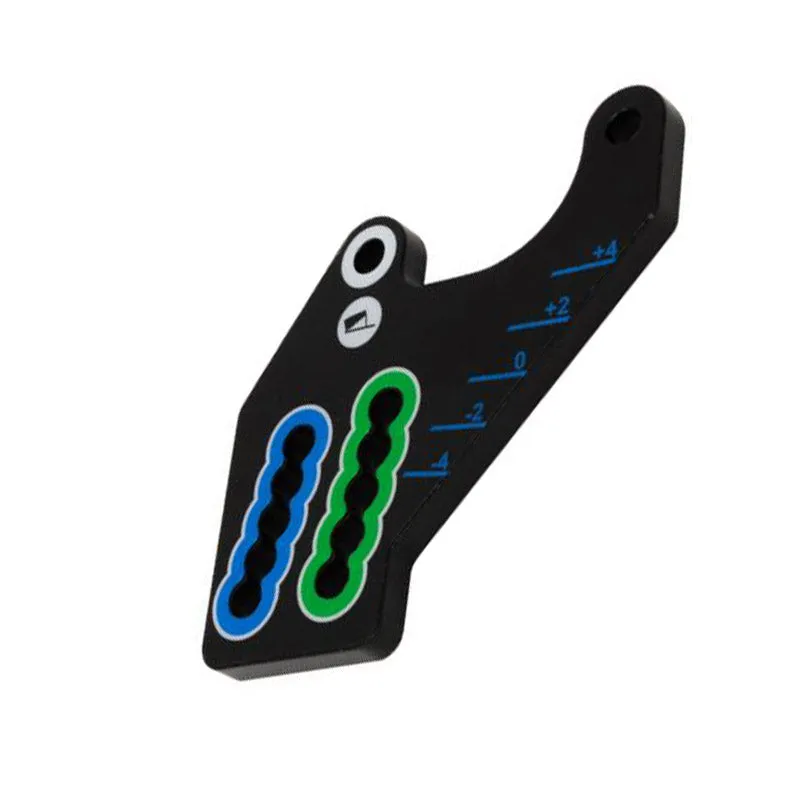

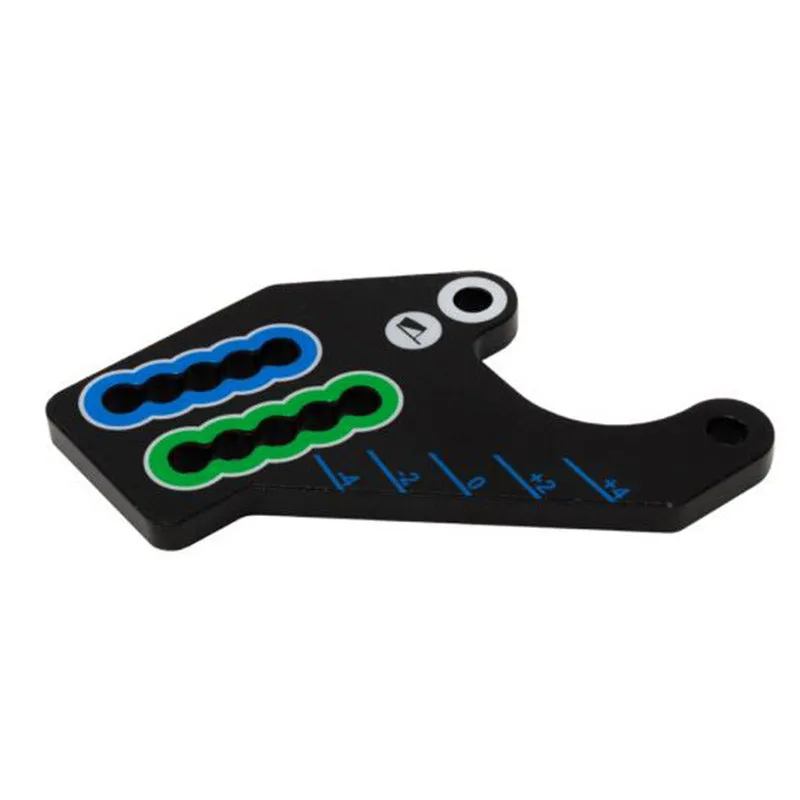

These precision alignment bars are used in conjunction with the Flying Frame to define the angle
between the Mini array and an MSX sub when the system is configured for ground stacking.
They will also be needed when the Mini array is to be ground stacked alone. Two versions are
available, long (Martin Audio Part No. ASF20056) and short (ASF20057); the two sizes allow
different ranges of angles to be set.
Features:
• Vertical angle adjustment for ground-stacked MLA Mini and
WPM systems
• Color coded for ease of deployment
Applications:
• Ground-stack up to 8 MLA Mini or 6 WPM
• Bar aiming angle from 5° to -4°
