Name: MCY 12-in-1 USB C Docking Station with DP
SKU: 2305638

Product Details ＋

Brand	MCY
Color	Gray
Hardware Interface	USB Type C
Compatible Devices	Mac Book, Xiaomi, Samsung, Dell, Asus, Huawei, Lenovo, Google, Samsung S8/S8 /S9/S9 , Huawei Mate 10/P20, and mobile phones, and laptops with TYPE-C that support video and data transmission
Total USB Ports	5
Item Dimensions LxWxH	5.02 x 2.38 x 0.57 inches
Number of Ports	12
Item Weight	0.25 Pounds
Total HDMI Ports	2
Wattage	100 watts

About this item

Laptop Docking Stations: The Mac OS itself does not support the extended screen effect. MCY 12 in 1 USB c triple docking station achieves the extended mode by the following steps needed from you: Settings-Display-Arrangement-Cancel Mirror Display. Also please drag the setting box to the page of the external screen. Then you can get one display of HDMI1 HDMI2 DP, and one display of your laptop. Totally two different contents for Mac OS
12-in-1 USB Docking Station: Perfectly combined the function of USB C Hub and docking station featuring type c port (85W PD charging), 2*4K HDMI ports,1*4K DP port, 2*super speed USB 3.0 Ports(Up to 5Gbps), 2 standard USB 2.0 Ports, Ethernet RJ-45 port, SD/TF card reader, USB3.1 Type-C; Make Your Life More Intelligent; Specially designed for USB interface equipment
Docking Station triple display: MCY Type C Hub expands triple monitors with our Adapter, HDMI port support up to 4K@60Hz; DP port support up to 4K@60Hz(when HDMI or DP be single useD). When using Triple display mode, For Mirror mode 3 monitors' resolutions are 4K @30Hz(for Mac)、1080P@60Hz(for Windows); For Extend mode 3 monitors' resolutions are 4K @30Hz(for Mac)、the resolution of two of the displays are 1080P@60Hz, another one will be limited to 1366*720@60Hz(for Windows)
Super Speed Data Transmission: 2*3. 0 USB ports up to 5 Gbps; 2* USB 2. 0 ports provide stable connection without wireless interference; Due to the USB 3. 0 radio frequency interference to the wireless connection, It is advisable to connect your wireless device to the USB 2. 0 port which located on the same side of the HDMI port; 1000Mbps Gigabit RJ45 Ethernet brings you a movie in few minutes; SD & TF slots support capacity up to 2TB and USB C to Card Reader can not be read simultaneously
High-speed charging: USB C PD Charging supports PD charging at max 85W; This HDMI docking station provides one Type-C pass through a Female port by which you could securely charge your laptop while connecting multiple peripherals for data transferring and worry-free power storage; With power delivery, a single USB-C port can give you Blazing-fast charging speed experience.

Product guides and documents

Product Description

12-in-1 Triple Display Docking Station

Triple display with Windows system

Setting： Please click Intel Graphics Settings for multi-display setting or hotkey: Windows P

Note1:When connecting three displays at the same time, the resolution can only reach up to （1920*1080@60Hz) （1920*1080@60Hz) （1366*720@60Hz)

Note2：Once your laptop shuts down or goes to sleep, you need to re-plug the product to get extended mode again.

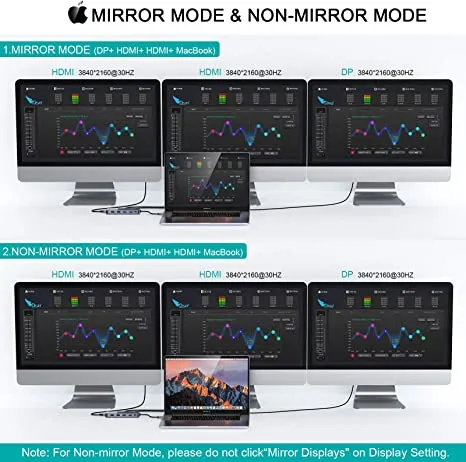

Triple display with MAC OS system

Setting: About This Mac>Display>Arrangement>Mirror Displays

Note1: When MAC OS needs to extend the display, you need to click on "Display" in Preferences, select the Arrangement, and then click Cancel "Mirror displays".

Note2：For the Mac system, it only supports mirror mode and non-mirror mode. Non-mirror mode means that the three external monitors are the same but different from the laptop. you can get one display of HDMI1 HDMI2 DP, and one display of your laptop. Totally two different contents for Mac OS.


4K Resolution Included 34K port 1DP port 2HDMI port. MCY USB C hub provides crystal clear video streaming with 34K@60Hz ports(Single video output). Only Mirror and Non-Mirror Modes are available for Mac OS Systems. This means all connected external monitors can only be mirrored on your MacBook screen, all of the external monitors show only one identical display which is different from your MacBook screen.	Charge & Use Simultaneously Allows a maximum of 100W pass-through charging while using. The real output is based on the adapter used,(for Type-C laptop or Type-C smartphone charging) maximum of 85W. Enables power up your device, even when multiple peripherals are attached and working. Power is shared by the hub and devices are connected.	Superior Data-storing Versatility The Card reader of MCY USB C hub works with SD，SDHC，SDXC ，Micro SD，MMC (SDXC :with high storage capacity up to 2TB). The maximum read speed is 104MB/S.Support SD card and TF card can not be used in the same time.


Max 1000 Mbps Speedy Ethernet MCY USB-C docking station gets a high-speed network connection on your USB-C device. Offering full 10/100/1000 Mbps Gigabit Ethernet performance over the RJ45 Ethernet port ensures you a stable, wired Internet connection.	High-Speed Data Transfer USB3.0 and 2.0 port， data transfer speed up to 5Gbps(USB3.0)/480Mbps(USB2.0). Stable and faster make it convenient for you to transfer data. USB C 3.0 ports are downward compatible with USB 2.0 and offers (5V@1A) charging (Data ports are not recommended for charging due to low output)	Specifications 1 x USB-C PD Charging Port 1 x DP Ports 2 x HDMI Ports 1 x TF/SD Card Slot 1 x RJ-45 Ethernet 1 x USB-C 3.1 Port 2 x USB-A 3.0 Ports 2 x USB-A 2.0 Ports

COMPATIBILITY

Compatible systems: Support most laptops running: Mac OS X; Windows 7/8/10; Linux; Chrome OS.

Important: MAC OS needs to extend the display, when you connect 2 or 3 monitors, the content displayed on the monitors is the same. And when you connect 2 or 3 monitors, the content displayed on the monitors is the same. In other words, MAC os only supports monitor mirror mode.

Compatible laptops: Compatible most laptops are equipped with a Thunderbolt 3 or a USB Type-c(Gen 2) port which supports DisplayPort Alternate Mode. Can not work for the laptop only own USB A ports

Compatible Monitors: Support a single or duplicate HDMI display up to 3840*2160@30Hz for Macbook. For Windows Laptops, only when your devices support 4K resolution, will the video output be 4K. Resolution can only reach up to 1920*1080/60HZ when connecting three monitors at the same time, and you need to turn off your laptop screen.

Power and Charging: This dock does not provide power to the connected laptop or tablet—the laptop will still require a separate charger. (Consider the hubs' Self-consumption please use a higher work-rate charger via PD port or plug the original charger directly into your laptop).

Note 1: This USB c dock does not include USB Flash Drive, cables, SD card other ancillary products.
